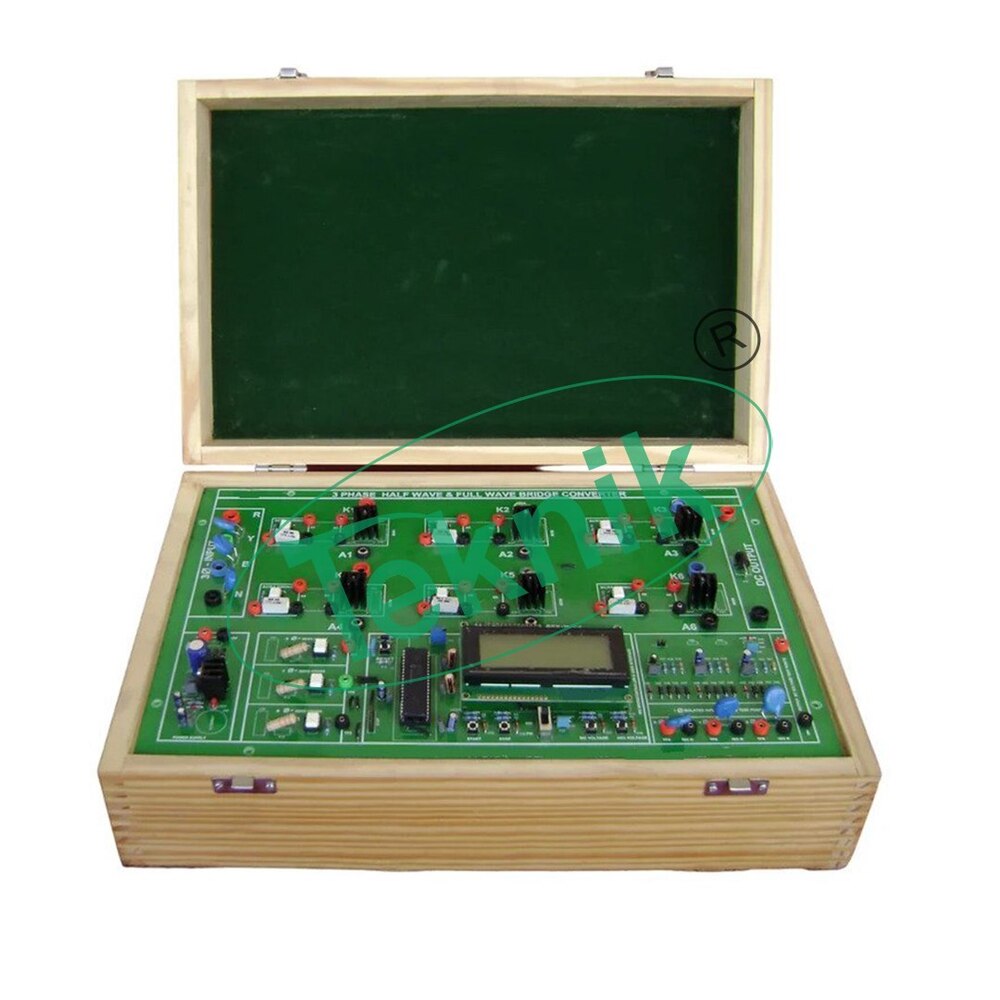

Three Phase Half Controlled Bridge Converter With Rl Load

Three Phase Half Controlled Bridge Converter With Rl Load

Get Latest Price

Minimum Order Quantity :

1 Piece

Brand Name :

Teknik

In Stock

Product Specifications

Number of Specimens	Test of one RL load circuit per operation
Frequency	50 Hz
Equipment Type	Three Phase Half Controlled Bridge Converter Trainer
Features	Test points, circuit diagram on panel, fuse protection, instructional manual included
Humidity	Up to 85% RH, non-condensing
Operating Voltage	415V AC, 10%
Automation Grade	Manual firing angle setting
Interface Type	Banana socket and digital readout
Max Height	350 mm
Measuring Range	Output voltage and current, as per rated values
Usage	THREE PHASE HALF CONTROLLED BRIDGE CONVERTER WITH RL LOAD
Product Type	THREE PHASE HALF CONTROLLED BRIDGE CONVERTER WITH RL LOAD
Response Time	<100 ms
Application	THREE PHASE HALF CONTROLLED BRIDGE CONVERTER WITH RL LOAD
Resolution	0.1V / 0.1A
Mounting Type	Tabletop
Accuracy	1% for voltage and current indication
Power Supply	AC 415V, 50Hz, Three Phase
Display Type	Digital panel meter
Test Range	0 to 415V output, 0 to 10A load current
Port Size	Standard test terminals
Temperature	Operating: 0C to 40C
Capacity	10A continuous output
Machine Weight	Approx. 20 kg
Test Speed	Variable, up to 50 Hz firing control
Test Width	Standard, 300 mm
Control Mode	Phase angle control
Payment Terms	Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Letter of Credit (L/C)
Packaging Details	Carton Box, Export Quality also Available
Main Export Market(s)	Asia, Middle East, Africa
Main Domestic Market	All India
Certifications	ISO 9001, 14001, CE
