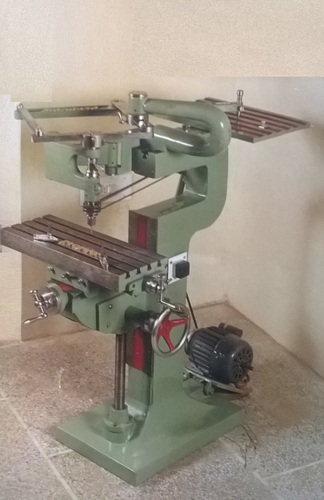

Three Dimensional Pantograph Engraving Machine
Price:
Get Latest Price
In Stock
Product Specifications
| Color | Oasis Green |
| Cutter Spindle | Nylon Endless Cords |
| Drive Motor | 1/2 H.P. 1440 Rpm |
| Features | 3D Engraving, Precise Cuts, Versatile, Durable, Efficient, Easy Use, High Speed, High Accuracy |
| Net Weight | 900 Kgs |
| No. Of Speeds | Eight |
| Overall Dimensions | 1400X1450X1500Mm |
| Speed Range | 720 To 12000 Rpm |
Product Overview
Key Features
We offer Three Dimensional Pantograph Engraving Machine.
Technical Specifications (Model No. VNT-33)
Drive Motor
Capacity
1/2 H.P. 1440 rpm
Cutter Spindle
Type of drive
Nylon endless cords
Speed range
720 to 12000 rpm
No. of speeds
Eight
Vertical travel
8 mm
Cross traverse
3 mm
Spindle hole taper
20 degree
Max. collect capacity
10 mm
Pantograph
Ratio (Max.)
1 : 1.5
Ratio (Min.)
1 : 10
Work Table
Clamping area
420X320 mm
Longitudinal traverses
350 mm
Cross traverse
160 mm
Distance Spindle
375 mm
Nose to table top No. of slots
Five (12 mm)
Template Table
Clamping area
330X460 mm
No. of copy holding slots
5
Vertical distance traces
330 mm
Head to table tope cross traverses
160 mm
Longitudinal traverses
200 mm
Swivel range
360 degree
Colour
Oasis Green
Overall Dimensions
L x W x H
(1400x1450x1500mm)
Net Weight
900 Kgs
Standard Accessories
Cuffer
HSS One No.
Collect
One
Tracing stylus
One
Monogram holder
Two
Job clamp
Two
Spanner
Two
Technical Specifications (Model No. VNT-33)
Drive Motor
Capacity
1/2 H.P. 1440 rpm
Cutter Spindle
Type of drive
Nylon endless cords
Speed range
720 to 12000 rpm
No. of speeds
Eight
Vertical travel
8 mm
Cross traverse
3 mm
Spindle hole taper
20 degree
Max. collect capacity
10 mm
Pantograph
Ratio (Max.)
1 : 1.5
Ratio (Min.)
1 : 10
Work Table
Clamping area
420X320 mm
Longitudinal traverses
350 mm
Cross traverse
160 mm
Distance Spindle
375 mm
Nose to table top No. of slots
Five (12 mm)
Template Table
Clamping area
330X460 mm
No. of copy holding slots
5
Vertical distance traces
330 mm
Head to table tope cross traverses
160 mm
Longitudinal traverses
200 mm
Swivel range
360 degree
Colour
Oasis Green
Overall Dimensions
L x W x H
(1400x1450x1500mm)
Net Weight
900 Kgs
Standard Accessories
Cuffer
HSS One No.
Collect
One
Tracing stylus
One
Monogram holder
Two
Job clamp
Two
Spanner
Two
