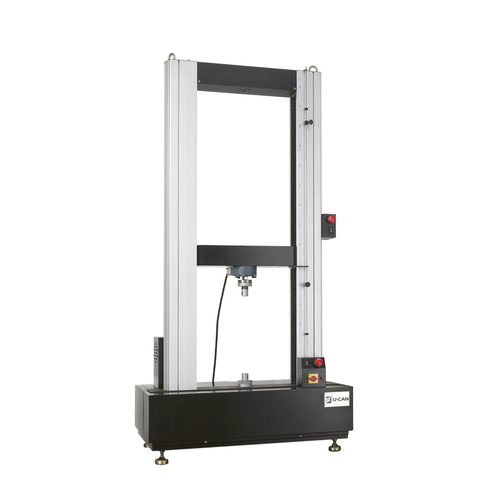

Tensile Test Machine (Ut2080) - Accuracy: A 1% Full Scale

Price: 20000.0 USD ($)

Get Latest Price

Minimum Order Quantity :

1 Number

In Stock

Machine Weight	70 kg
Test Speed	0.1-500 mm/min
Test Width	80 mm
Control Mode	Microcontroller based digital control
Test Stroke	600 mm
Power Supply	220V, 50Hz
Port Size	Standard Interface
Gas Pressure	No external gas required
Humidity	20-80% RH
Temperature	10A C to 40A C
Test Range	10 N a 20 kN
Number of Specimens	1 (single test at a time)
Specimen Size	Up to 80 mm width
Capacity	20 kN
<b>Equipment Type</b>	Universal Tensile Testing Machine
Application	Tensile and elongation testing for metals, plastics, rubbers
Measuring Range	0 a 20,000 N
Accuracy	A 1% full scale
Resolution	0.01 mm
Display Type	Digital LCD display
Response Time	Instantaneous
Operating Voltage	220 VAC
Interface Type	USB/RS232
Features	Overload protection, auto return, fine stroke adjustment
Mounting Type	Floor Stand
Usage	Industrial, Laboratory
Automation Grade	Semi-Automatic
Max Height	1400 mm
Hardness	Steel construction
Frequency	50 Hz
GSTIN	0%
