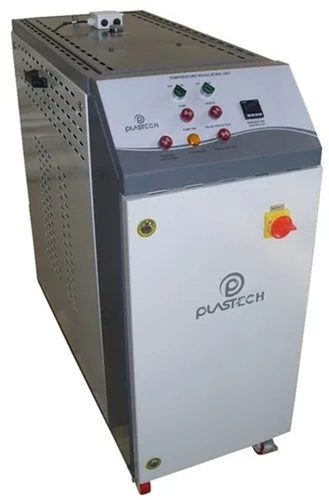

Leak Proof Stainless Steel Temperature Regulating Controller

Designed to maintain the process temperature with circulated oil/water that has been heated or cooled to the required Set Point.

Features:
Leak-proof, stainless steel, twin tube unitized pump volute/heater, and mixing tube assembly eliminates pipe fittings which could lead to and minimizes flow restrictions for peak performance.
Internal bypass, sediment traps, and pump seal flush line ensure the pump seals are continuously flushed to remove debris and are protected from overheating under low flow conditions.
Pressure Gauges on water/oil, inlet, and outlet.
Italian Y type Brass strainer at the inlet of cooling water source to protect entering foreign particles.
Clear indication of Set & Actual value.
Oil Based for a temperature up to 200A C.
Water Based for a temperature up to 121A C.
Draining Facility is provided for cleaning tank.
Level monitoring for dry running protection of pump.
Re-feeding Valve for Automatic Refilling.
Audio Alarm for process faults & abnormalities.
For Pump Safety over Load Protection is used.
Stainless Steel Low Watt Density Heater.
High Pressure High Flow process pump.
Main Power Isolation Switch.
Solenoid Valve on process Inlet Connections.
Non-Return Valve on process Outlet Connections.
Safety pressure switch to operate Pump and Heater for high-temperature system.
