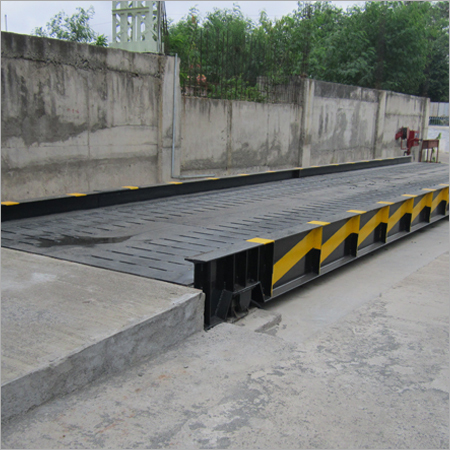

Black Sturdy Electronic Weighbridge

With the aid of our technologically advanced manufacturing unit, we are able to provide our clients a wide array of Sturdy Electronic Weighbridge. The offered electronic weighbridge is made available in different capacities and models, and are used for accurate measurement of loaded and unloaded heavy-duty trucks and other objects. The offered electronic weighbridge is delivered to our clients only after its proper examination on different aspects such as functionality, finish, performance, etc. Further, we offer this Sturdy Electronic Weighbridge in different specifications and at the economical prices to our esteemed clients

Features:

• High strength


• Long operational life

• Trouble-free functionality

• Easy maintenance

Specifications:

• Maintenance free, long life, consistent performance

• No moving parts, therefore no inaccuracy due to wear & tear.

• Fast response very low requirement of pit reducing civil costs.

• Eliminating human error, better control facilities & data processing.

These varying demands call for technological competence, with an organizational flexibility and teamwork needed to meet special requirements. As an international supplier of Electronic Weighing Systems, Wintech is among the few companies able to meet this challenge.

Construction:

The typical Electronic Weighing consists of a fabricated platform, 4 or 6 or 8 load cells, junction box, Load cells cable (from J. Box to weigh bridge cabin) and weighing indicator. Electronic weigh bridge can be classified as:-

• Pitless type / surface mounted weighbridge

• Conventional pit type weighbridge. Pitless weighbridge saves the cost of civil work. It is useful in areas where hazardous gases are present in the atmosphere, where the soil is rocky, & in low lying areas where water logging is problem. Pit type weighbridge occupies less space as the ramps are not required on either side.

Type WFEW-SM platform are installed on ground, and have guards on the sides.

Type WFEW-PM is a range of low-height flat platform for installation on ground, or for in-the pit installation to be flush with ground level.

Unique Suspension Mechanism:

• This special feature eliminates the need of cumbersome constrainer/Tie rods & thereby eliminates friction.

• Better accuracy and repeatability

• Avoids shock and side thrust loads to the load cell thereby ensuring long life of load cell.

• Easy access to install, inspect and maintain

• The suspension design allows the platform to swing in the direction of the movement of the vehicle & thereby absorbs the lateral & transverse breaking forces maintaining better accuracy, reliability and repeatability over a long period.

The Wintech load cell are ideal for all industrial weighing applications. Due to their utmost reliability, compact and robust, hermetically sealed construction, they are widely installed in platforms, hoppers, bunkers, tanks, and cranes; in all branches of industry.

The Feature include:

• Standard mounting dimensions.

• Protection to IP 67.

• Large overload capability.

• Wild operating temp range.

• Insensitive to vibration.

Specifications

• Rated Load Capacities: 5, 10, 20, 30 Tonnes

• Input Resistance: 350 + 5 ohms

• Output Resistance: 350 + 3 ohms

• Excitation Recommended: 12 V DC/AC (R.M.S.)

• Rated Output: 2mv/V

• Zero Load Output: 1% R.O. (Rated Output)

• Non-Linearity: 0.05% R.O.

• Hysterisis: 0.02% R.O.

• Thermal Effect on Effect on Zero: 0.002% R.O. / C

• Thermal Effect on Sensitivity: 0.003% R.O. / C

• Insulation Resistance: >5000 Mega ohms

• Creep at 20 minutes: <+0.03% R.O.

• Temperature Range Operative: -30 C to 80 C

• Permissible Dynamic Loading: 70% R.O.

• Safe Load: 150% Rated Load

• Ultimate Load: 300% Rated Load

• Protection clause: IP 67
