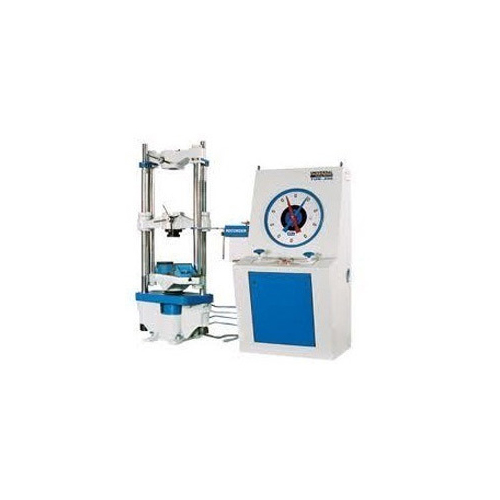

Standard Universal Testing Machine Digital - Capacity Range 5t To 200t | Digital Load Readouts, Manual Cross-head Adjustment, Safety Devices
Price: 10 INR / Piece
Get Latest Price
Minimum Order Quantity :
1 Piece
Brand Name :
Teknik
In Stock
Product Specifications
| Port Size | Standard Universal Jaw |
| Resolution | 0.01 kN |
| Max Height | 1850 mm |
| Hardness | Structural hardened alloy |
| Temperature | 10AdegC to 40AdegC |
| Accuracy | A+-1% |
| Mounting Type | Floor Mounted |
| Display Type | Large digital touchscreen |
| Operating Voltage | 220V/240V AC |
| Measuring Range | 2 kN to 600 kN |
| Product Type | Standard Universal Testing Machine Digital |
| Frequency | 50 Hz |
| Test Range | 2 kN to 600 kN |
| Power Supply | 220V/240V AC, 50 Hz |
| Humidity | a%0$?85% RH |
| Interface Type | USB / RS232 |
| Specimen Size | Flat: Up to 100 x 32 mm, Round: Up to 50 mm diameter |
| Equipment Type | Standard Universal Testing Machine Digital |
| Features | Programmable, Overload and Over-travel protection, Real-time data acquisition |
| Usage | Strength of Material Testing Equipments |
| Number of Specimens | Up to 4 specimens |
| Application | Strength of Material Testing Equipments |
| Response Time | < 2 sec |
| Automation Grade | Automatic |
| Capacity | Up to 600 kN |
| Machine Weight | Approx. 500 kg |
| Test Speed | 0.5 to 500 mm/min (variable) |
| Test Width | 600 mm |
| Test Stroke | 650 mm |
| Control Mode | Digital/Automatic |
| Payment Terms | Letter of Credit (L/C), Telegraphic Transfer (T/T), Cash in Advance (CID), Cheque, Cash Advance (CA) |
| Supply Ability | 100 Per Week |
| Delivery Time | 1 Week |
| Sample Available | Yes |
| Sample Policy | Sample costs shipping and taxes has to be paid by the buyer |
| Packaging Details | carton box, export quality also available |
| Main Domestic Market | All India |
| Certifications | ISO 9001, 14001 ,CE |
Product Overview
Key Features
FEATURES:
Loading Accuracy as high as + 1% Straining at variable speeds to suit a wide range of materials. Manual adjustment of cross-head. (Motor driven threaded columns for quick effortless adjustment of lower cross-head-to facilitate rapid fixing of test specimen.(optional) Simplicity in load reading because of digital readouts. Wide range of standard and special accessories.
Easy change from plain to threaded and screwed specimens.
Large effective clearance between columns enables testing of standards specimens as well as structures.
Simple controls for easy of operation.
Robust staining frame of an extremely rigid construction.
Safe operation ensured by means of safety devices.
No pendulum is used.
Optional serial port to transfer data to computer for analysis /storage etc.
Control and Printer are supplied as option to enable obtain test data & load-vs-elongation curve for studying the behavior of the materials.(optional)
Capacities available : from 5T(50KN) to 200T(2000KN)
