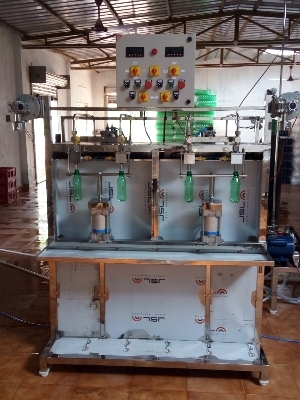

Soda Filling Machine - Stainless Steel 304, 14 Head Rinser & Filler, 6 Head Capper | Efficient Performance, Low Power Consumption, Robust Design

We are offering our clients with technically upgraded Soda Filling Machine. These offers products are fabricated by making use of supreme quality required upgraded basic material and components, in tandem with the defined parameters of the industry. Furthermore, to meet divergent demands of the clients, we have made the offered product available in different technical specifications.


Features:
Robust construction
Efficient performance
Low power consummation

Specifications:
Rinser: 14 Head rinser
Filler: 14 Head filler
Capper: 6 Head capper
Maximum Speed: 55-60 BPM
Main Body: MS fabrication with SS gladding
Housing : SS 304
Main tank & liquid contacts parts are : SS 304
Infeed air conveyor: 8 feet long 0.5 HP Blower
Outfeed conveyor: 16 feet long A HP geared motor
Hopper for cap feeding : A HP gear motor
Main motor : 2 HP 1000 RPM make Hindustan
Main gear box : Bonfiglioli make Italy
Tank pressure : 7kg / cm2
C.P. filler valve : Special purpose & accuracy filling
Valve Open : Pneumatic cylinder
No bottle no filling & no capping
Bottle transfer with neck holding Type
Pressure gauge mounted on tank top CO2 stuffing box is provided with tank
No change over parts very low maintenance
AC variable speed frequency drive systems
Bottom complete SS Doors
