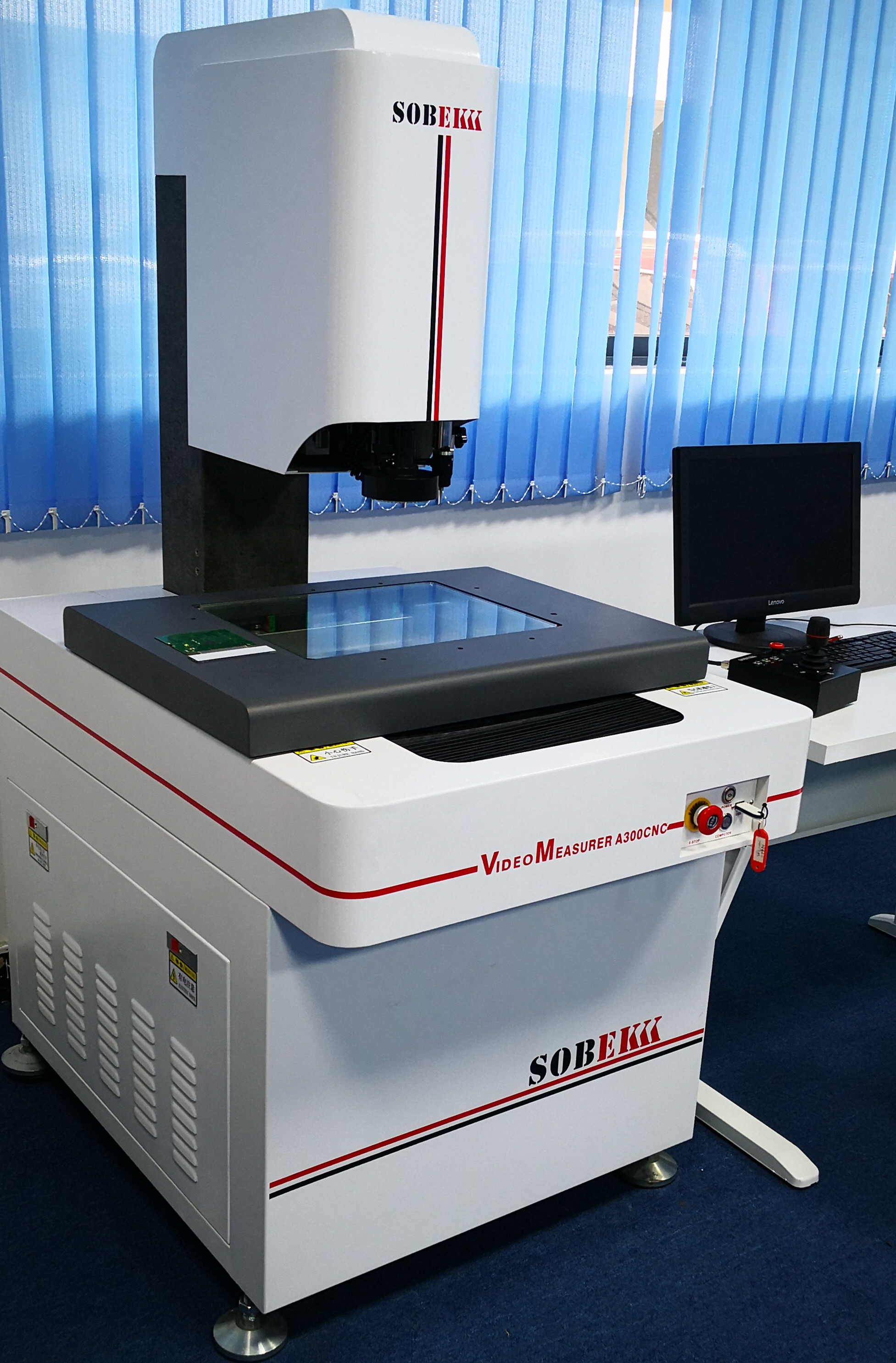

Sobekk A-cnc Automatic Video Measuring Machine
Price Trend: 12600-38000 USD
Get Latest Price
Minimum Order Quantity :
1
Brand Name :
Sobekk
In Stock
Product Specifications
| Max Height | 150 mm (Z axis) |
| Automation Grade | Automatic (CNC) |
| Test Range | 200 mm A-- 100 mm A-- 150 mm |
| Port Size | USB, LAN |
| Application | Precision measurement for electronics, hardware, plastics, medical, tooling, and automotive parts |
| Measuring Range | X: 200 mm, Y: 100 mm, Z: 150 mm |
| Specimen Size | Max 200 mm (X) A-- 100 mm (Y) A-- 150 mm (Z) |
| Features | CNC control, auto focus, auto measurement, high repeatability, programmable measurement, high stability granite base |
| Display Type | Digital LCD, software-based display |
| Gas Pressure | 0.4 MPa aEUR" 0.6 MPa (for optional pneumatic options) |
| Operating Voltage | AC 220V, 50/60Hz |
| Power Supply | AC 220V A+-10%, 50/60Hz |
| Temperature | 20AdegC A+- 2AdegC |
| Accuracy | 2.5 + L/200 I1/4m |
| Frequency | 50/60 Hz |
| Resolution | 0.0001 mm |
| Number of Specimens | 1 (Batch Option Available) |
| Interface Type | USB 2.0 / LAN |
| Mounting Type | Benchtop |
| Response Time | <1 s |
| Equipment Type | Automatic Video Measuring Machine |
| Humidity | 40aEUR"70% RH |
| Hardness | Granite base ensures structural rigidity |
| Usage | Dimensional Measurement, Quality Inspection |
| Capacity | Up to 30 kg |
| Machine Weight | Approx. 350 kg |
| Test Speed | 10 mm/s |
| Test Width | 200 mm |
| Test Stroke | 200 mm A-- 100 mm A-- 150 mm |
| Control Mode | CNC Automatic |
| FOB Port | Shanghai |
| Supply Ability | 1000 sets Per Year |
| Delivery Time | 1 Week |
| Sample Available | Yes |
| Sample Policy | Sample costs shipping and taxes has to be paid by the buyer |
| Packaging Details | Wooden Case |
| Main Domestic Market | All India |
| Certifications | CE,ISO9001 |
