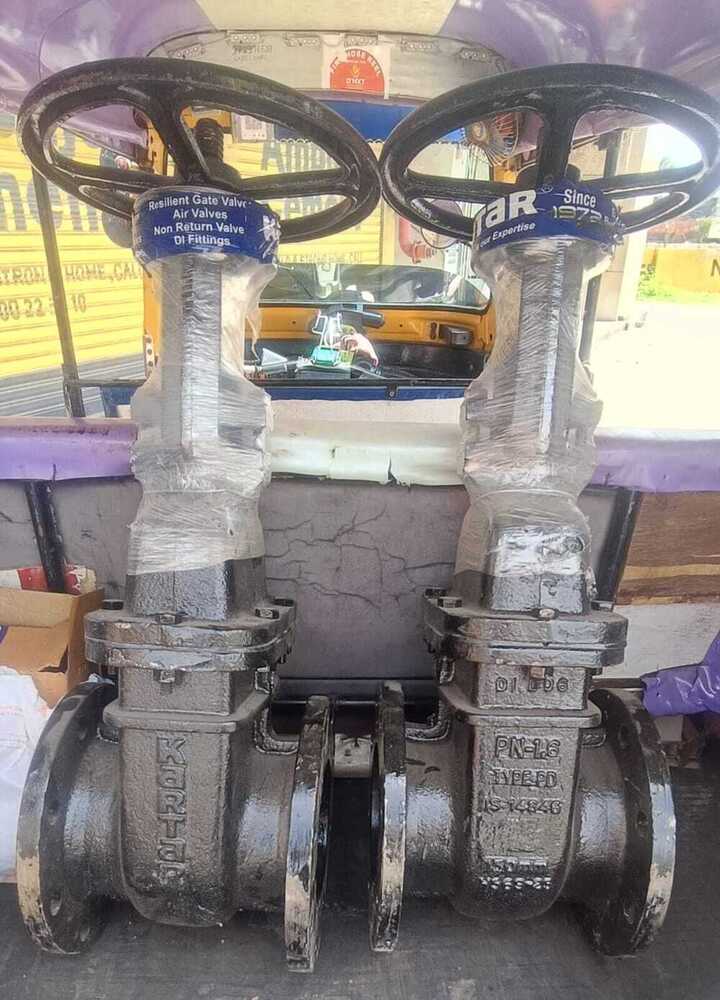

Sluice Valve - Cast Iron & Ductile Cast Iron, Vertical & Horizontal Sizes 50mm To 1500mm, Max Pressure 7.5 Kgf/cm2, Fluid Compatibility With Water & Sea Water

We are involved in offering to our esteemed patrons premium grade Sluice Valve which is available with following specification:-
1. SIZE
Vertical type : 50mm ~ 1,200mm
Horizontal type : 400mm ~ 1,500mm
2. WORKING PRESSURE : Max. 7.5 kgf/cm2
3. VALVE END
Flange (KS D 4309, ISO R 13)
Other standards are available on request.
4. Fluid : Water, Sea Water
5. Direction of Opening : Counter-clockwise to open
6. TEST PRESSURE
Leakage test : 7.5 kgf/cm2
Shell test : 17.5 kgf/cm2 (50 ~ 350mm)
14.0 kgf/cm2 (400 ~ 1500mm)
7. MAIN MATERIAL
Body : Cast Iron (GC200)
Ductile Cast Iron (GCD450)
Steel Casting (SC410)
Disc : Cast Iron (GC200)
Ductile Cast Iron (GCD450)
Steel Casting (SC410)
Stem : High tensile brass (C3771, C6782, STS304)
Stainless Steel (STS304, STS403)
Seat : Bronze Coating (BS6)
Stainless Steel (STS304)
