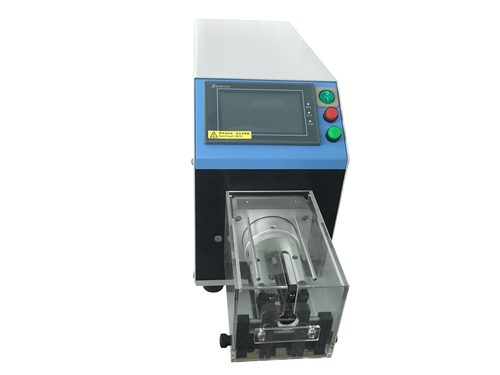

Simple Operation Coaxial Wire Stripping Machine

We feel proud to introduce ourselves as a well reputed Exporter and Manufacturer of Simple Operation Coaxial Wire Stripping Machine in Dongguan, Guangdong, China.
Product Model: HL-8515
Payment Terms : 100% In Advance
Date of Shipment: 1-5 days
Warranty Terms: One Year Free Warranty

Feature:
Mainly used for coaxial cable and special processing of single line, using the most advanced rotary tool rest, improves the precision and speed. In a specific way of axis positioning device and rotary cutting tool, the most can peel 9 layer without replacement blades corresponding processing various size and sheath wires, and equipment can be set in a free and combined controller,through digital display cutting wire diameter.

Specification:
processing cable type:coaxia cable, triaxial cable, shielded cable, rigidity cable, bellows coaxial cable
Max cable diameter:up to 15mm
Cutting unit depth:0.01mm
weight:26kg
dimension:620x335x218mm
Max stripping length:85 mm
Max stripping layers:9 layers
Drive mode:Motor/ball screw drive(Japan imports)
Productivity:400-500pcs/h(Depending on the length and types of cable)
Supply power:220V/50Hz
Rated power:380W
Working environment:0-50 degrees, moderate drying, vibration-free work surface, moderate dryness workshop.
