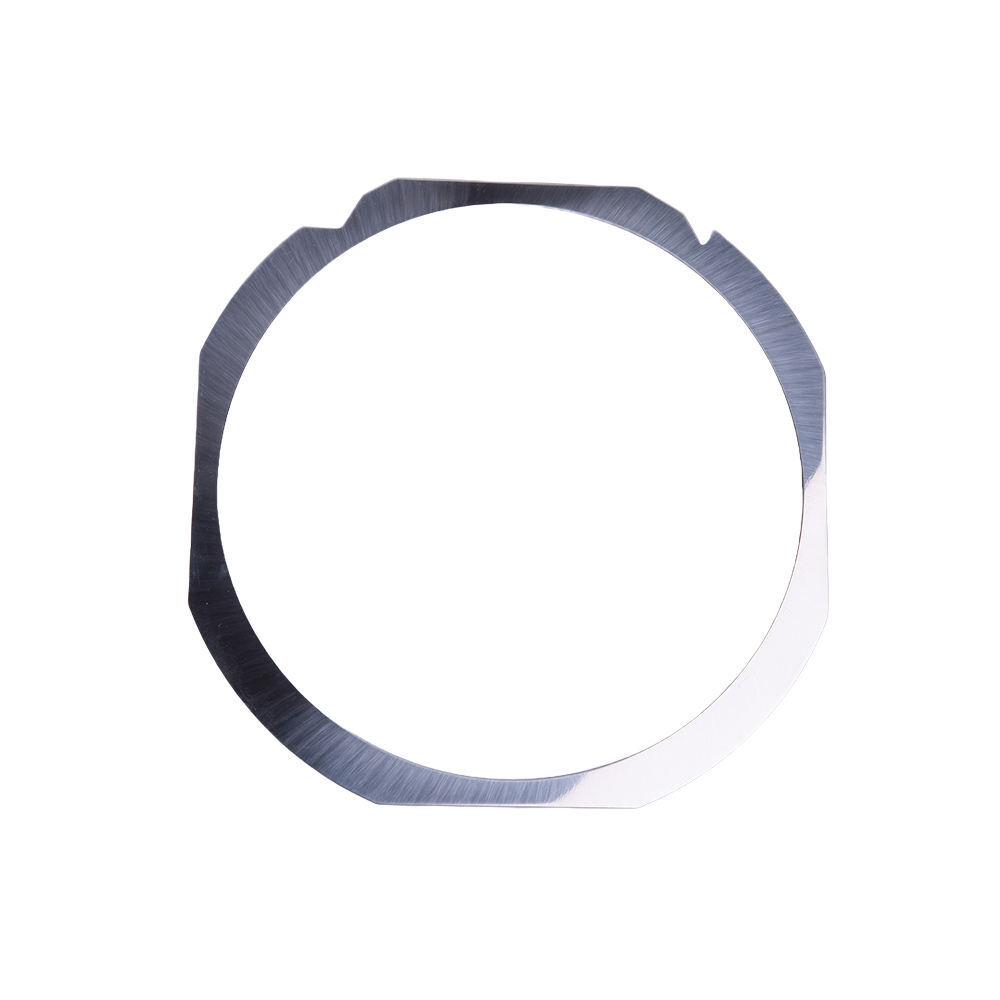

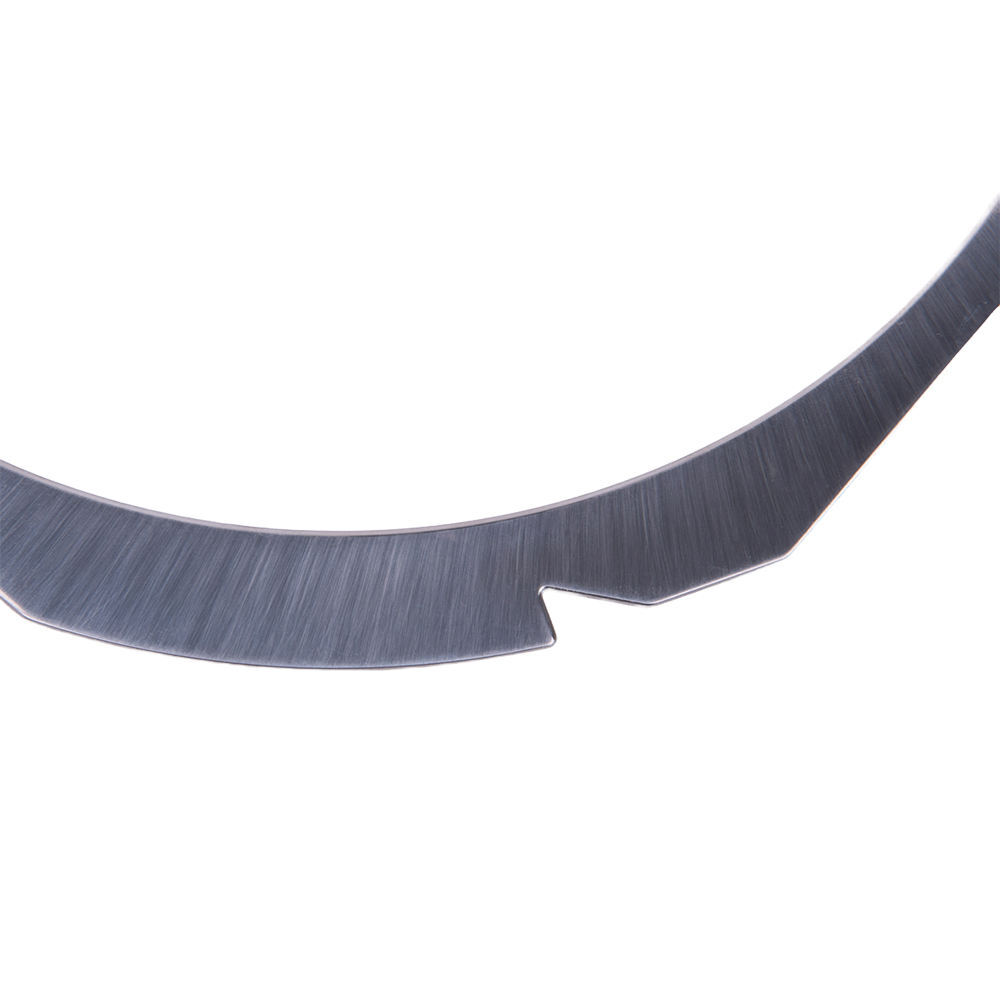

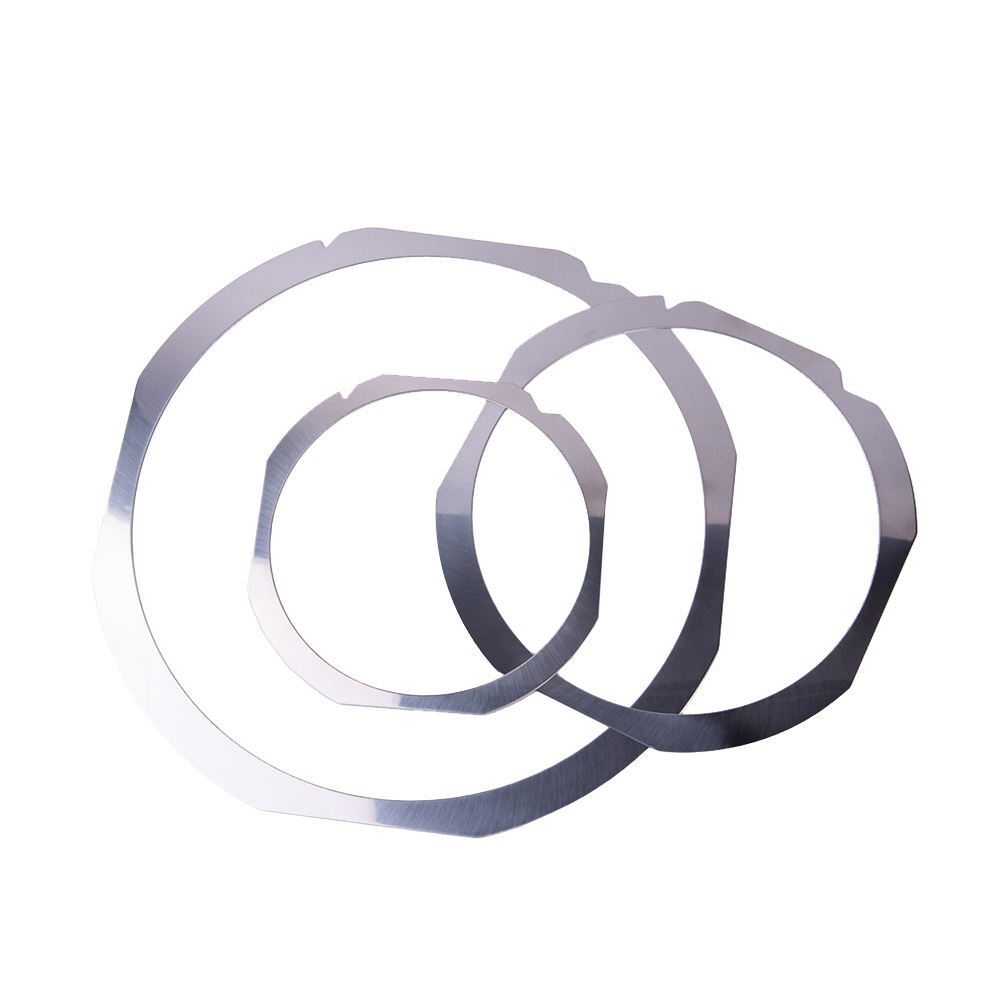

Semiconductor Wafer Dincing Ring Frame

Get Latest Price

Minimum Order Quantity :

In Stock

Product Specifications

Components	Frame body
Features	Corrosion resistance, high dimensional accuracy, robust construction
Operating Temperature	-10C to 150C (typical)
Usage	Supports wafer integrity in semiconductor manufacturing
Interface	Wafer chucks, tape handling systems
Thermal Conductivity	High (metal frame)
Product Type	Wafer Dicing Ring Frame
Application	Semiconductor wafer dicing and processing
Size	Standard wafer sizes (6 inch, 8 inch, 12 inch, custom)
Dimension (LWH)	Dimension matches wafer size; typical OD: 8-13 inches
Function	Holder for semiconductor wafer during dicing process
Color	Metallic Silver / Gray
Weight	Lightweight (<50g, typical)
Capacity	Single wafer support per frame
Thickness	Typically 0.5 mm to 1 mm
Payment Terms	Cash in Advance (CID)
Supply Ability	500 Per Month
Delivery Time	2-5 Days
Main Export Market(s)	Asia

Company Details

Business Type

Exporter, Manufacturer, Supplier

Employee Count

Establishment

1985

Working Days

Monday To Friday

Payment Mode

Online Payments (NEFT/RTGS/IMPS), Cheque/DD

Certification

ISO 45001 & 14001 Certified、BSI 9001
