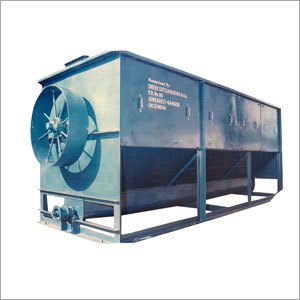

Seed Pre Cleaner - 111" Length X 46" Width X 114" Height | High-efficiency Vibro Feeder, Adjustable Air Regulation, Interlocking Cnc Punching Screens

The main function of this Seed Pre Cleaner is clean the seeds received from production site before it is fine cleaned The Seeds and grains have lot of dirt, inert matter, reject material, stones, dust and plant parts when it is harvested and threshed. To clean it partially it is fed to Per Cleaner where it is cleaned at high speed separating all unwanted material like light chaff, kadi, katli, sand, soil, infested seeds, immature seeds, under size seeds, over size seeds etc. so that the Fine Cleaner can do its basic function of Fine cleaning and proper size grading.
Features:
Vibro feeder for accurate feeding with full width suitable for both heavy and light materials, Regulating valve for easy capacity adjustment, Clearly marked scales at all regulating valves, Interlocking CNC punching screens, Rubber ball cleaning secures trouble free operation, Head and tail aspiration giving maximum efficiency, Externally mounted dynamically balanced aspiration fan, Adjustable false air intake provides for high efficiency in the cyclone, Easy to operate air regulation valves, The machine is well arranged and easy maintain.
Technical Specifications:
Model
IAE/PRE/JTotal
LengthTotal
WidthTotal
HeightWidth
Of ScreenScreen
LengthMotor For
Fan(HP)Motor For
Sieve Boat (HP)Capacity
TPH(Wheat Basis)
1007111a (2775MM)46a (1150MM)114a (2850MM)36a (900MM)45.5a (1155mm) x 2no5HP2HP4
1507111a (2775MM)63a (1575MM)120a (3000MM)53.5a (1360MM)45.5a (1155mm) x 2no
