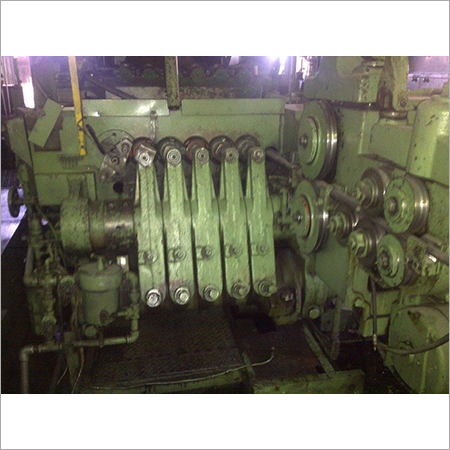

Mild Steel Automatic Heavy Duty Screw Making Machine

FEATURES These cold heading machines are fully automatic and easy to operate with little training, fitted with Solid Die to produce blank for Bolts, Screws, Rivets and other similar components. Cut off and knock out mechanism have safely devices that will stop any major accident if any abnormal function occurs in machines. A positive knock out provision had been made on the 1st and 2nd punches to eliminate the possibility of parts sticking to these punches during the operations. The maximum parts of the machines are ground and all the Cames and Rollers from H.C.H.C. ( Hardened & Ground ). On some extra charges machines will be equipped with Pneumatic Clutch & Automatic Centralized Lubrications systems which provides sufficient quantity lubricating to all bearing surface. SPECIFICATION Item Code No. Length of Screw Dia. of Screw Production Per Minute Motor H.P & R.P.M. ABM-FM-6480 3/4" (2 mm - 20 mm) 1/8" (1 mm - 3 mm) 125 - 150 Pcs. 1 x 1400 ABM-FM-6481 1-1/2" (4 mm - 36 mm) 3/16" (2 mm - 5 mm) 110 - 125 Pcs. 2 x 1400 ABM-FM-6482 2" (7 mm - 50 mm) 1/4" (3 mm - 6 mm) 100 - 110 Pcs. 5 x 960 ABM-FM-6483 2-1/2" (7 mm - 65 mm) 5/16" (4 mm - 8 mm) 90 - 100 Pcs. 7.5 x 960 ABM-FM-6484 3" (10 mm - 75 mm) 3/8" (5 mm - 10 mm) 70 - 75 Pcs. 10 x 960
