Here are some specifications for SCR (Silicon-Controlled Rectifier) rectifiers:

Electrical Specifications:

- Voltage Rating: SCRs are available in various voltage ratings, ranging from a few hundred volts to several thousand volts
- Current Rating: SCRs can handle currents from a few amps to several hundred amps
- Gate Trigger Voltage: The voltage required to trigger the SCR into conduction, typically in the range of 0.5V to 2V
- Holding Current: The minimum current required to keep the SCR in conduction, typically in the range of 5mA to 50mA

Performance Characteristics:

- Switching Speed: SCRs can switch on and off quickly, but may have slower turn-off times due to internal capacitance
- Power Loss: SCRs have low power loss during conduction, but may have higher losses during switching
- Thermal Resistance: SCRs can operate at high temperatures, but may require heat sinks or cooling systems to maintain reliability

Package Types:

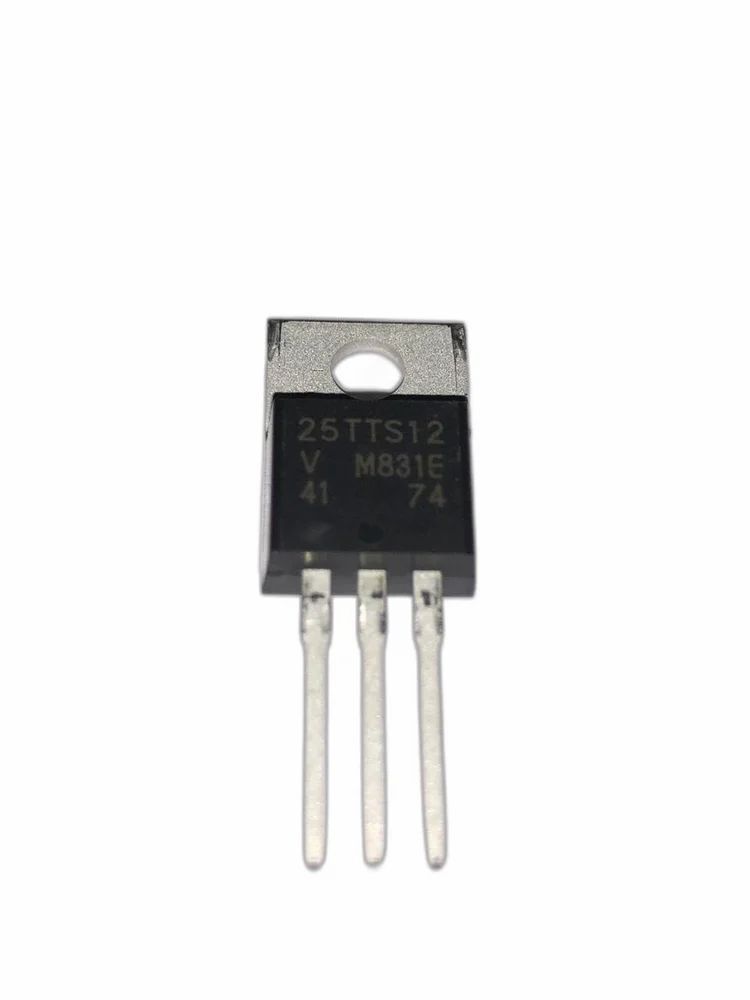

- TO-220: A popular package type for SCRs, offering good thermal performance and ease of mounting
- TO-247: A larger package type for high-power SCRs, offering improved thermal performance and higher current handling
- Module Packages: SCRs can be packaged in modules, which provide improved thermal performance and ease of installation

Applications:

- Power Supplies: SCRs are used in power supplies to convert AC to DC power
- Motor Control: SCRs are used in motor control applications to regulate the speed and direction of motors
- Lighting Control: SCRs are used in lighting control applications to dim or brighten lights
- Industrial Power Systems: SCRs are used in industrial power systems, such as welding equipment and power conversion systems

These specifications can vary depending on the specific SCR device and application.
