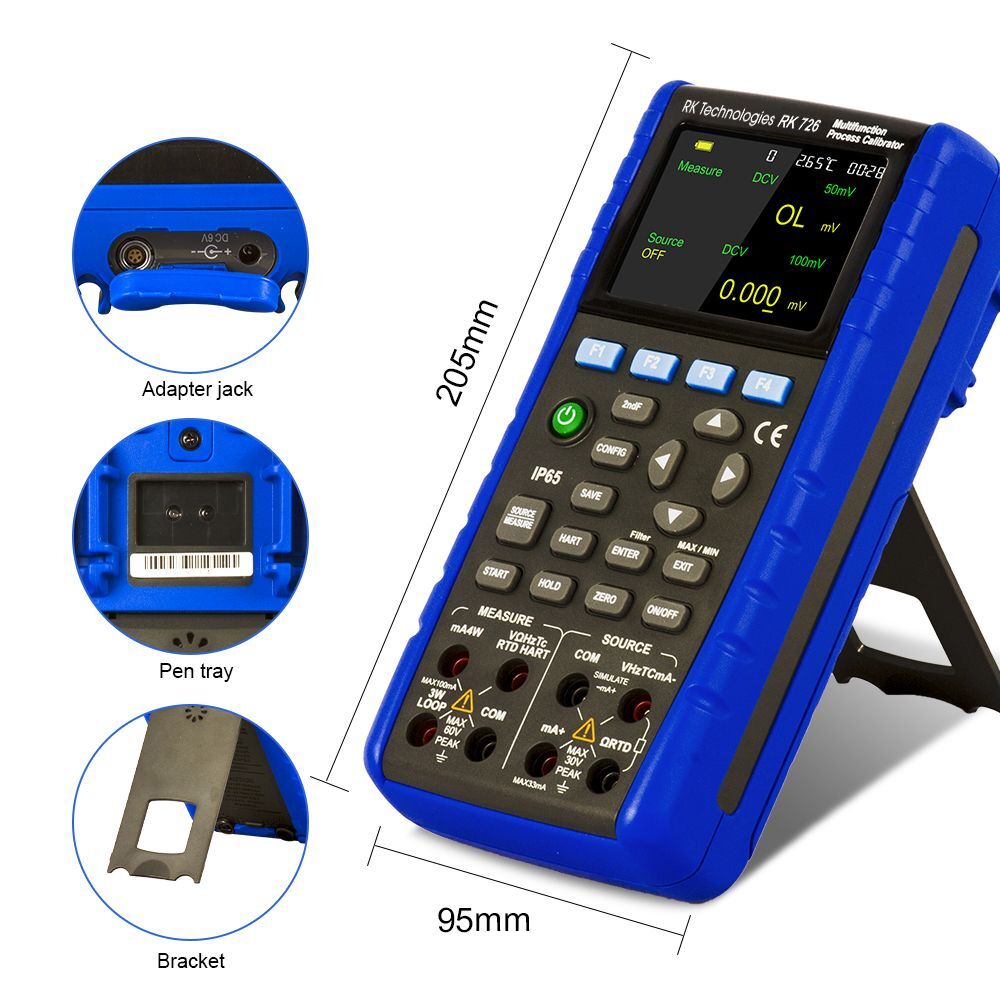

Rk-726 Multifunction Process Calibrator

Get Latest Price

Minimum Order Quantity :

In Stock

Product Specifications

Max Height	220 mm approx.
Accuracy	Voltage: 0.02%, Current: 0.02%, Thermocouple: 0.5C or better (depending on type)
Features	IP65 protection, multi-function output and measure, HART communication, data hold, MAX/MIN memory, automatic power-off, backlit display
Mounting Type	Handheld/portable
Test Range	DCV: 0~30V, mA: 0~24mA, Thermocouple and RTD simulation & measurement
Automation Grade	Manual and semi-automatic
Application	Calibration and verification of process instruments including transmitters, recorders, controllers, PLCs, and meters
Resolution	Voltage: 0.001V, Current: 0.001mA, Resistance: 0.01, Temperature: 0.01C
Power Supply	6 x AA batteries or external DC adapter
Display Type	High-contrast LCD digital display
Temperature	Operating: -10C to 50C, Storage: -20C to 60C
Interface Type	RS232/HART communication supported
Humidity	<85% RH (non-condensing)
Response Time	1s
Equipment Type	Multifunction Process Calibrator
Measuring Range	Voltage: 0~30V, Current: 0~24mA, Resistance: up to 4000, Frequency: up to 100kHz
Operating Voltage	DC 9V (with external adapter)
Frequency	Measurement: up to 100 kHz
Port Size	Standard 4mm banana jacks
Usage	Field and laboratory calbration of process instruments
Machine Weight	About 600g (including battery)
Control Mode	Manual and automatic modes supported
Payment Terms	Cash in Advance (CID)
Supply Ability	100 Per Month
Delivery Time	2-5 Days
Main Domestic Market	All India
