Reinforcing Mesh Welding Machine - Wire Diameter 5.0-12mm, 2500mm Net Width | Intelligent Plc Control, High Capacity Multi Hopper, Synchronous Servo Feeding
Price:
Get Latest Price
In Stock
Product Specifications
| Wire Diameter | 5.0-12Mm |
| Line Wire Form | Pre-Cut |
| Weft Wire Distance | 25Mm+ |
| Weft Wire Form | Pre-Cut |
| Line Wire Distance | 100-300Mm |
| Rated Voltage | 380V |
| Welding Net Width | 2500Mm |
| Rated Power | 140Kva X 12 |
| Welding Speed | 25/Min |
| Overall Dimension | 24 X 6.0 X 2.65M |
| Line Wire No. | 24 |
| Length Wire Net | 6000Mm |
| Features | High Speed, Auto Feeding, Easy Control, Large Hopper, Durable Welding, Efficient Process, Smart Operation |
Product Overview
Key Features
This kind machine is our latest developed reinforcing mesh welding machine. The line wire and the weft wire are pre-straight and pre-cut. The line wire is feeding by the servo motor ,pulling the wire net by the servo motor auto. The welding power comes from the cylinders. It's easy to control the welding pressure . The weft wire feeding from the multi hopper which capacity is more over ten times than the traditional hopper. The new machine added the bear wire net and carry equipment that makes the working more convenience . The welding part is used the springiness input wire trunking that makes the welding copper use for long time. This machine adopts synchronous control technique. The cent-control and welding time are composed of PLC program system. The input front-panel is touch screen , the operate is more intelligent and reasonable.
Main technical parameters:
Wire diameter : 5.0-12mm
Line wire form : pre-cut wire
Weft wire distance : Mini 25mm
Weft wire form : pre-cut wire
Line wire distance : 100-300mm
Rated voltage : 380V
Welding net width : 2500mm
Rated power : 140KVA X 12
Welding speed : 25times/min
Overall dimension : 24 X 6.0 X 2.65M
line wire No. : 24
Length wire net : 6000mm
Products & Application:
The welded mesh can be used in the floor & wall reinforcing mesh in the building, reinforcing mesh in the tunnel, bridge and road.
Main technical parameters:
Wire diameter : 5.0-12mm
Line wire form : pre-cut wire
Weft wire distance : Mini 25mm
Weft wire form : pre-cut wire
Line wire distance : 100-300mm
Rated voltage : 380V
Welding net width : 2500mm
Rated power : 140KVA X 12
Welding speed : 25times/min
Overall dimension : 24 X 6.0 X 2.65M
line wire No. : 24
Length wire net : 6000mm
Products & Application:
The welded mesh can be used in the floor & wall reinforcing mesh in the building, reinforcing mesh in the tunnel, bridge and road.
Company Details
Hebei Jiaoyang Wire Mesh Machine Co., Ltd., Established in 2000 at Anping in Hebei, is a leading Exporter,Manufacturer,Supplier,Trading Company of Industrial Machinery & Parts in China. Hebei Jiaoyang Wire Mesh Machine Co., Ltd. is one of Trade India's verified and trusted sellers of listed products. With extensive experience in supplying and trading Reinforcing Mesh Welding Machine, Hebei Jiaoyang Wire Mesh Machine Co., Ltd. has made a reputed name for itself in the market with high-quality Brick Force Mesh Machine, Mine Timbering Mesh Welding Machine, Reinforcing Mesh Welding Machine, etc.
Focusing on a customer-centric approach, Hebei Jiaoyang Wire Mesh Machine Co., Ltd. has a pan-India presence and caters to a huge consumer base throughout the country. Buy Industrial Machinery & Parts in bulk from Hebei Jiaoyang Wire Mesh Machine Co., Ltd. at Trade India quality-assured products.
Focusing on a customer-centric approach, Hebei Jiaoyang Wire Mesh Machine Co., Ltd. has a pan-India presence and caters to a huge consumer base throughout the country. Buy Industrial Machinery & Parts in bulk from Hebei Jiaoyang Wire Mesh Machine Co., Ltd. at Trade India quality-assured products.
Business Type
Exporter, Manufacturer, Supplier, Trading Company
Establishment
2000
Related Products

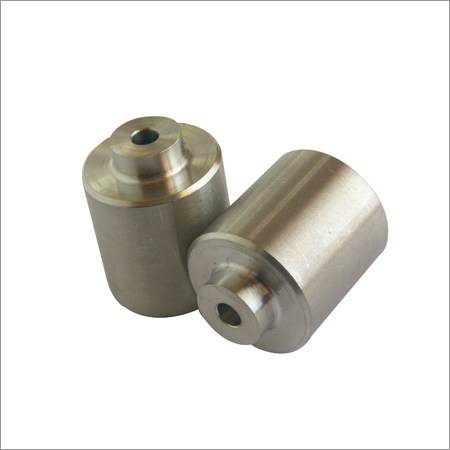

High Strength Durable Steel Precision Machined Components
