Rebar Threading Machine By Industrial Machinery Corp.

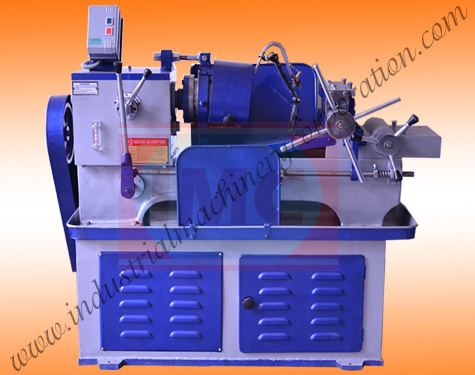

Rebar Threading Machine

In this industry, we are considered as a primary manufacturer and exporter of Rebar Threading Machine. Machines offered by us are made by using premium quality raw materials and advanced techniques in conformation with the international quality standards. The salient features of our offered range of machines are excellent performance, energy efficiency and long service life. Rebar Threading Machine offered by us is used in industries for cutting external threads on rebar.

Rebar Threading Machine is used for Cutting External Thread on Rebars by Chasing method. HSS Tangential Chasers are used as cutters. Rebar remains stationery and Die Head rotates. Matric, BSP, BSPT, NPT, UNF,UNC, BSW, Acme Threads B.S.F etc. threads can be cut on this machine depending upon

REBAR THREADING MACHINE is designed to give maximum efficiency and reliable performance under the most severe conditions of service with minimum maintenance cost. All the necessary requirements are combined in this model to from the basic fundamentals of correct threading. All the gears are made of case hardened steel with extra large face with and tooth thickness and cut on hobbing machine for noiseless operation even at high speed. Naturally the are built with high standards of workmanship, material and quality so closely associated with COMPANY TRADITION.

DESIGN & WORKMANSHIP: The Industrial Machinery Corporation thread cutting machines are designed to produce quality threads within the tolerance for which they were intended.

HEAD STOCK: A heavy duty geared Head Box is of best quality casting providing support to the spindle bearings. The box is of gear type, lubricated, fitted with three extra heavy duty bearings.

THE BED: The bed is pillar type having two pillars made of best quality steel nicely finished & duly hard chrome plated in the most modern hard chrome plating unit.

THE SADDLE: The Saddle is fitted on two pillars very precisely. It runs on pillars very smoothly and accurately to the Head Stock alignment.

The APRON: The apron gives movement to the saddle with head transfer along with pillars through steel rack and pinion arrangements. It's all gears are made of best quality steel.

VICE JAWS: The vice jaws made from the best quality alloy steel are fitted on the saddle well aligned with the head stock center fitted in a heavy duty box type vice. The jaws are heat treated. The movements of jaws are controlled by a screw on the saddle.

Range of IMC Die Heads.
1/4" to 1" do/-
3/8" to 1.1/2" do/-
1/2" to 2.1/2" do/-

Rebar Threading Machine Specifications:
