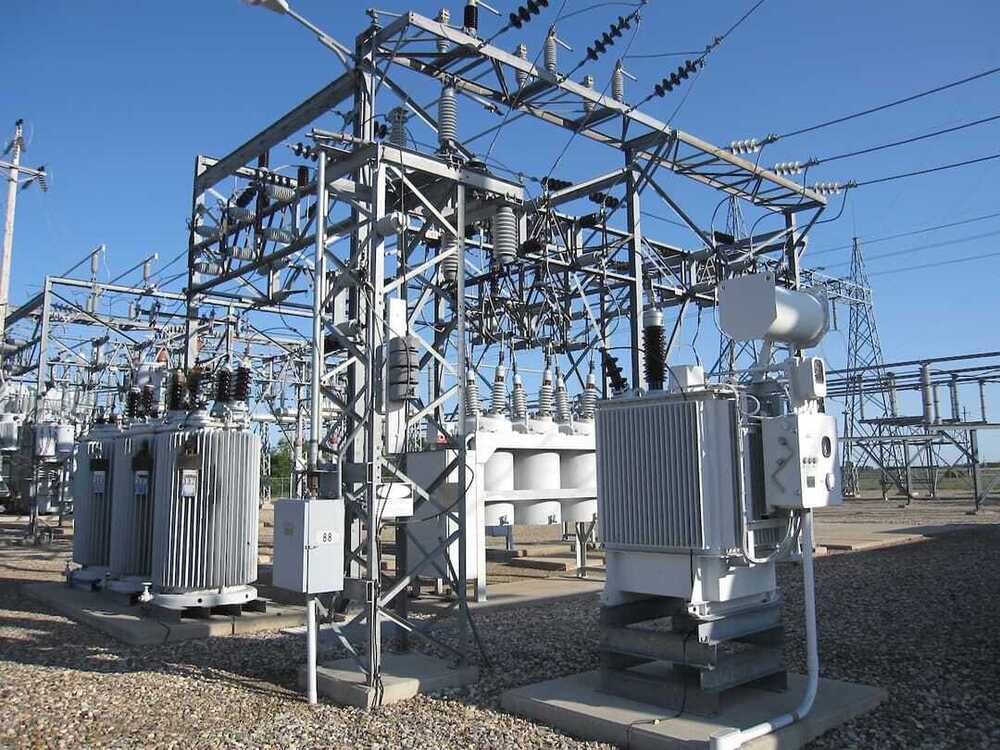

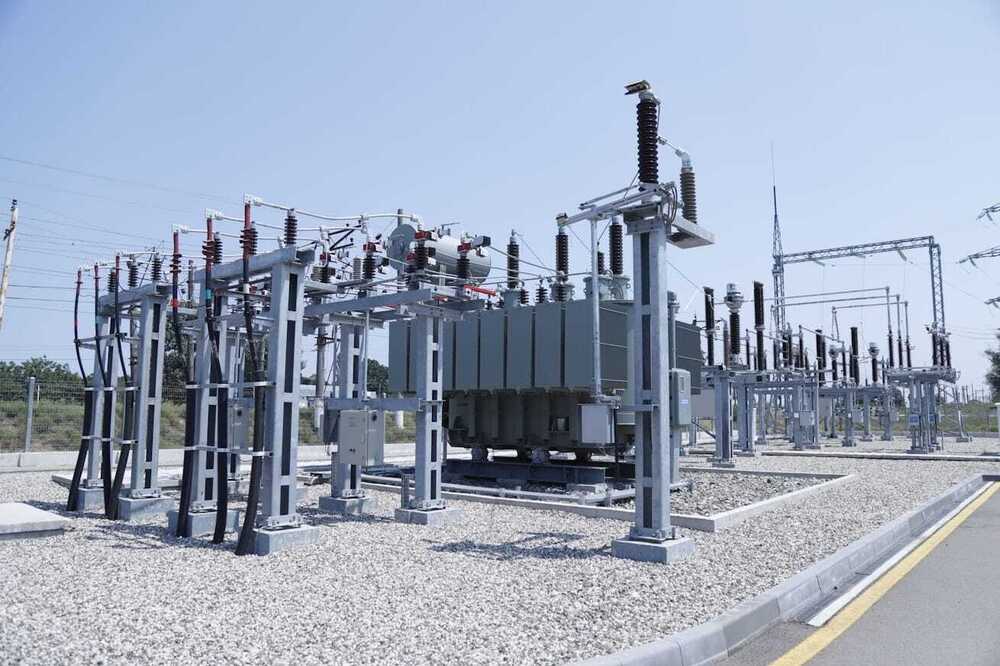

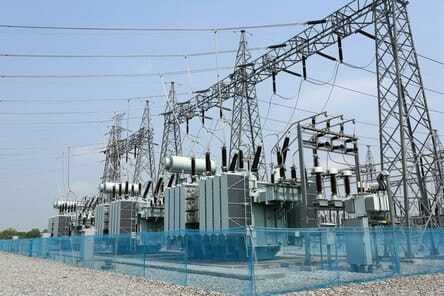

Power Sub Station Gi Structure

Get Latest Price

Minimum Order Quantity :

50 Piece

In Stock

Product Specifications

Connection	Bolted/Welded steel connection
Wall Materials	Other, GI Sheets with support framing or brick masonry
Dimension (LWH)	Customizable; common for structures: up to 20m x 10m x 15m
Insulation	Other, Generally non-insulated; insulation for control rooms if present
Life Span	25-35 years with proper maintenance
Door Material	Other, Mild Steel (MS) or Galvanized Iron (GI)
Window Material	Other, Powder coated Aluminum, Glass, or GI with Louvers
Open Style	Other, Fixed/Sliding as per module
Material	Other, Galvanized Iron (GI), Mild Steel (MS), Concrete
Roof Material	Other, Galvanized Iron (GI) Sheet or Mild Steel (MS) Sheet
Thickness Of Wall Panel	2mm-5mm (for GI panel); up to 230mm (brick)
Door	Other, Single/Double-leaf, lockable
Window	Other, Present as per design, safety louvers if provided
Window Style	Other, Fixed, with/without ventilation louvers
Floor Material	Galvanized Iron (GI) Grating or Concrete
Floor Load	Designed as per substation equipment load; typically 5-10 kN/m2
Roof Dead Load	0.5-1.5 kN/m2
Roof Live Load	1.0-2.5 kN/m2
Earthquake Intensity	Designed as per seismic zone (Zone II-IV)
Color	Silver/Metallic Grey (Galvanized)
Use	Other, Erection of electrical sub-station structures; support for switchgear and power equipment
Supply Ability	1000 Per Month
Delivery Time	10-15 Days
