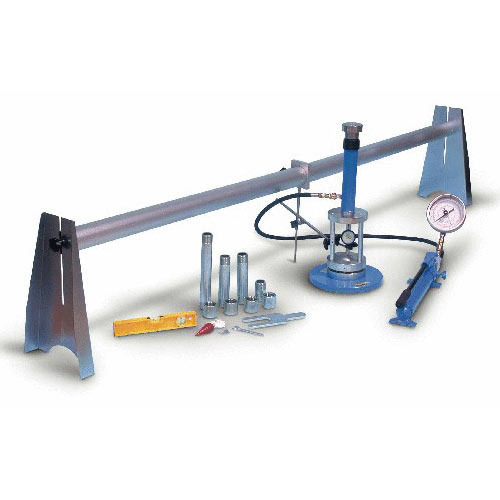

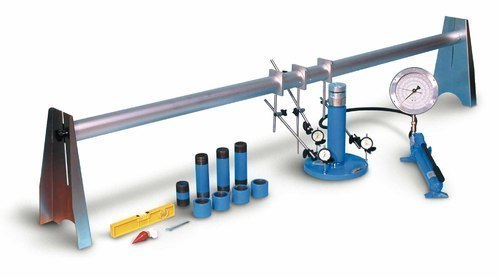

Plate Bearing Test Port Size: Customize

The basic outfit consists of : 50 tone Hydraulic jack with separate pumping unit fixed to a 0- 500KN x 0.5KN. Pressure gauge and flexible metal piper 5 mtr long- 1No. Special ball and socket arrangement between the jack and the bearing plate-1No. Extension rod 12mm. dia. x 25cm. long for taking dial gauge readings-16 Nos. Magnetic base with female thread on top for holding extension rod-4Nos. Top end plate, 50mm, dia. with male thread for fitting onto the extension rods and positioning the dial gauge plinger-4Nos. Column 15cm. dia. x 25cm long with flanges complete with four bolts and nuts- 2Nos. Column 15cm. dia. x 50cm long with flanges complete with four bolts and nuts- 1Nos. Bridge support of welded steel angel construction, 5mtr. Span and stands approximately 30cm, high, fitted with two quick release clamps a for positioning and holding the dail bracket-2Nos. Plane M.S. Plate 60cms x 60cms. Square x 25mm thick plane M.S. Plate 45cmx square x 25mm thick plane M.S. Plate 30cms x 30cmx square x 25mm thick Dial Gauge 0.01mm x 25mm- 4Nos.
