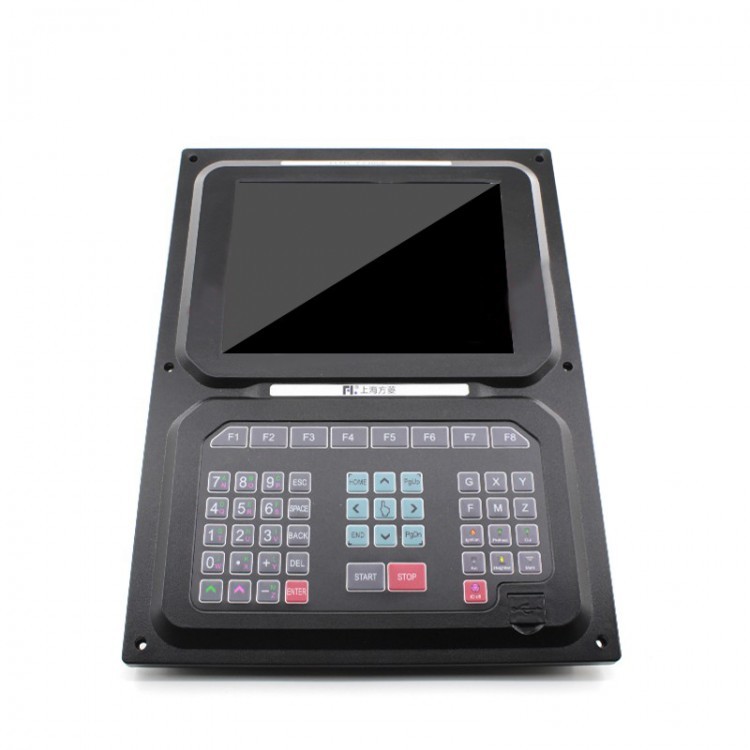

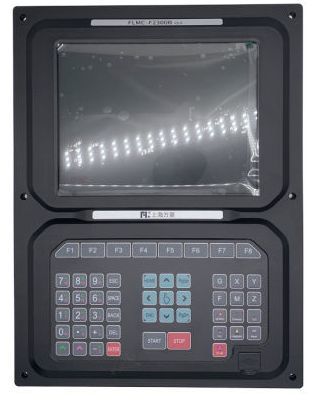

F2300b Plasma Flame Cnc Controller

Key features are as follow:

1) Chinese/English/French/Portuguese/Russian/Denmark/Korean language menu, the menu can be switched only by one key. Man-Machine-Dialog software and Professional Hot Key design for the easy cutting operation, user-friendly as Hypertherns EDGE controller.

2) 15 inches 1024*768 dots color LCD, USB interface.

3) set up different administrative authorities and the corresponding password to safeguard the interests of managers

4) "Cutting offset" function can avoid waste the steel plate when the nesting of the plate is calculated wrong.

5) Automatically memorize the working situation and the last cutting point when power off.

6) Dynamic/static illustration of the process, graphics zoom in / out, dynamically tracking cut-off point under zooming state.

7) According to plate thickness, the cutting speed is automatically restricted by a speed limit in the corner, effectively preventing overburn.

8) Movement speed can be real-time acceleration, deceleration.

9) Support edge cutting. It can save the preheat time for the thick steel plate.

10) Plasma arc feedback, positioning feedback, automatically shut down the arc at the corner.

11) Support THC, two-level preheat, three-level pierce in flame mode.

12) Flame and Plasma are separated in the control IO ports.

13) Support the Flame, Plasma, Dusting draw, and Demonstration four kinds of mode.

14) Import and export files by single or all files.

15) all functions and techniques can upgrade online

16) System Self-diagnosis for easy trouble-shooting.

17) All input and output port type and the number can be customized (normally open or normally closed)

18) Coordinate system can be customized to support the two-dimensional coordinates of all eight kinds.

19)Operations such as Proportion Zoom, Rotate, Mirror, Array display, Steel plate angle adjust..all available and have the professional solution in the CNC controller.

20) compact keyboard design and easy to input files.

21) Support the EIA code (G code) and various Fast CAM, Free Nest,Smart Nest, IBE software.

22) Long-distance remote control can control the machine to move forward, backward, left, right, and cutting start, stop, and so on (optional configuration).
