Planetary Gear Box - Forged Alloy Steel, Concentric Design For High Torque | Noise Free Operation, Best Load Sharing
Price:
Get Latest Price
In Stock
Product Specifications
| Color | Black |
| Diameter | Varied |
| Features | High Strength, Long Lasting, Durable, Versatile, Fine Finishing, Sturdy Design, Cost Effective |
| Length | Varied |
| Material | Polyester |
| Packaging | Spool |
| Tensile Strength | Varied |
| Weight | Varied |
Product Overview
Key Features
We are highly renowned in this industry as the best supplier and distributor of an excellent range of Planetary Gear Box. This machine works on planetary motion principle. It also gives the highest weight /volume ratio. Capable of handling the highest torque, this Planetary Gear Box is wisely made of forged alloy steel. We offer our complete range to clients in a wide variety of specifications and sizes to meet their exact needs.
Features:
- Ensures best load sharing
- Noise free operation
- No leakage of oil
PS Series
PS-062
Specifications for C: Concentric (1-Stage)(GR:5/10)
- Rated Output Torque(Nm) (Ratio:5): 48 /(Ratio:10): 43
- Max. Acceleration Torque(Nm): 1.8 times of rated output torque
- Max. Output Torque(Nm): 3 times of rated output torque
- Rated Input Speed: 3000 rpm/Max. Input Speed: 6000 rpm
- Weight(Kg): 1.35
Specifications for A: Concentric (2-Stage)(GR:20/30)
- Rated Output Torque(Nm) (Ratio:20): 51 /(Ratio:30): 45
- Max. Acceleration Torque(Nm): 1.8 times of rated output torque
- Max. Output Torque(Nm): 3 times of rated output torque
- Rated Input Speed: 3000 rpm/Max. Input Speed: 6000 rpm
- Weight(Kg): 2
Specifications for R: Concentric (1-Stage) (GR:5/10)
- Rated Output Torque(Nm) (Ratio:5): 48 /(Ratio:10): 43
- Max. Acceleration Torque(Nm): 1.8 times of rated output torque
- Max. Output Torque(Nm): 3 times of rated output torque
- Rated Input Speed: 3000 rpm/Max. Input Speed: 6000 rpm
- Weight(Kg): 2.35
Specifications for L: Concentric (2-Stage) (GR:20/30)
- Rated Output Torque(Nm) (Ratio:20): 51 /(Ratio:30): 45
- Max. Acceleration Torque(Nm): 1.8 times of rated output torque
- Max. Output Torque(Nm): 3 times of rated output torque
- Rated Input Speed: 3000 rpm/Max. Input Speed: 6000 rpm
- Weight(Kg): 3
PS-90
- Specifications for C: Concentric (1-Stage) (GR:5/10)
- Rated Output Torque(Nm) (Ratio:5): 160/(Ratio:10): 141
- Max. Acceleration Torque(Nm): 1.8 times of rated output torque
- Max. Output Torque(Nm): 3 times of rated output torque
- Rated Input Speed: 3000 rpm/Max. Input Speed: 6000 rpm
- Weight(Kg): 3.6
Specifications for A: Concentric (2-Stage) (GR:20/30)
- Rated Output Torque(Nm) (Ratio:20): 146 /(Ratio:30): 151
- Max. Acceleration Torque(Nm): 1.8 times of rated output torque
- Max. Output Torque(Nm): 3 times of rated output torque
- Rated Input Speed: 3000 rpm/Max. Input Speed: 6000 rpm
- Weight(Kg): 5.5
Specifications for R: Concentric (1-Stage) (GR:5/10)
- Rated Output Torque(Nm) (Ratio:5): 160/(Ratio:10): 141
- Max. Acceleration Torque(Nm): 1.8 times of rated output torque
- Max. Output Torque(Nm): 3 times of rated output torque
- Rated Input Speed: 3000 rpm/Max. Input Speed: 6000 rpm
- Weight(Kg): 6.6
Specifications for L: Concentric (2-Stage) (GR:20/30)
- Rated Output Torque(Nm) (Ratio:20): 146 /(Ratio:30): 151
- Max. Acceleration Torque(Nm): 1.8 times of rated output torque
- Max. Output Torque(Nm): 3 times of rated output torque
- Rated Input Speed: 3000 rpm/Max. Input Speed: 6000 rpm
- Weight(Kg): 8.2
PS-120
- Specifications for C: Concentric (1-Stage) (GR:5/10)
- Rated Output Torque(Nm) (Ratio:5): 333/(Ratio:10): 294
- Max. Acceleration Torque(Nm): 1.8 times of rated output torque
- Max. Output Torque(Nm): 3 times of rated output torque
- Rated Input Speed: 3000 rpm/Max. Input Speed: 5000 rpm
- Weight(Kg): 8
Specifications for A: Concentric (2-Stage) (GR:20/30)
- Rated Output Torque(Nm) (Ratio:20): 300 /(Ratio:30): 311
- Max. Acceleration Torque(Nm): 1.8 times of rated output torque
- Max. Output Torque(Nm): 3 times of rated output torque
- Rated Input Speed: 3000 rpm/Max. Input Speed: 5000 rpm
- Weight(Kg): 11
Specifications for R: Concentric (1-Stage) (GR:5/10)
- Rated Output Torque(Nm) (Ratio:5): 333/(Ratio:10): 294
- Max. Acceleration Torque(Nm): 1.8 times of rated output torque
- Max. Output Torque(Nm): 3 times of rated output torque
- Rated Input Speed: 3000 rpm/Max. Input Speed: 5000 rpm
- Weight(Kg): 13.8
Specifications for L: Concentric (2-Stage) (GR:20/30)
- Rated Output Torque(Nm) (Ratio:20): 300 /(Ratio:30): 311
- Max. Acceleration Torque(Nm): 1.8 times of rated output torque
- Max. Output Torque(Nm): 3 times of rated output torque
- Rated Input Speed: 3000 rpm/Max. Input Speed: 5000 rpm
- Weight(Kg): 12.5
PS-142
Specifications for C: Concentric (1-Stage) (GR:5/10)
- Rated Output Torque(Nm) (Ratio:5): 618 /(Ratio:10): 549
- Max. Acceleration Torque(Nm): 1.8 times of rated output torque
- Max. Output Torque(Nm): 3 times of rated output torque
- Rated Input Speed: 3000 rpm/Max. Input Speed: 5000 rpm
- Weight(Kg): 14.3
Specifications for R: Concentric (1-Stage) (GR:5/10)
- Rated Output Torque(Nm) (Ratio:5): 618 /(Ratio:10): 549
- Max. Acceleration Torque(Nm): 1.8 times of rated output torque
- Max. Output Torque(Nm): 3 times of rated output torque
- Rated Input Speed: 3000 rpm/Max. Input Speed: 5000 rpm
- Weight(Kg): 13.8
Company Details
BDRO Competence Technologies Pvt Ltd. is listed in Trade India's list of verified sellers offering supreme quality of Planetary Gear Box, etc. Buy Gear Boxes, Reduction Gears & Gear Cutting in bulk from us for the best quality products and service.
Business Type
Importer, Distributor, Supplier, Trading Company
Employee Count
15
Establishment
2016
GST NO
09AAHCB0551B1Z6
Related Products
Bonfiglioli planetary gearbox
Price: 100000
MOQ - 2 Piece/Pieces
Agro Tech Engineers
Ghaziabad, Uttar Pradesh
Planetary Gearbox - Precision Engineered Performance, Compact Design with Versatile Mounting Options
Saggu Gears India
Ghaziabad, Uttar Pradesh
Planetary Gear Box - Forged Alloy Steel, Concentric Design for High Torque | Noise Free Operation, Best Load Sharing
Bdro Competence Technologies Pvt Ltd.
Ghaziabad, Uttar Pradesh
Cast Iron Planetary Gearbox - Color: Silver
Price: 33225 INR
MOQ - 1 Piece/Pieces
Multitech Industrial Solutions
Noida, Uttar Pradesh

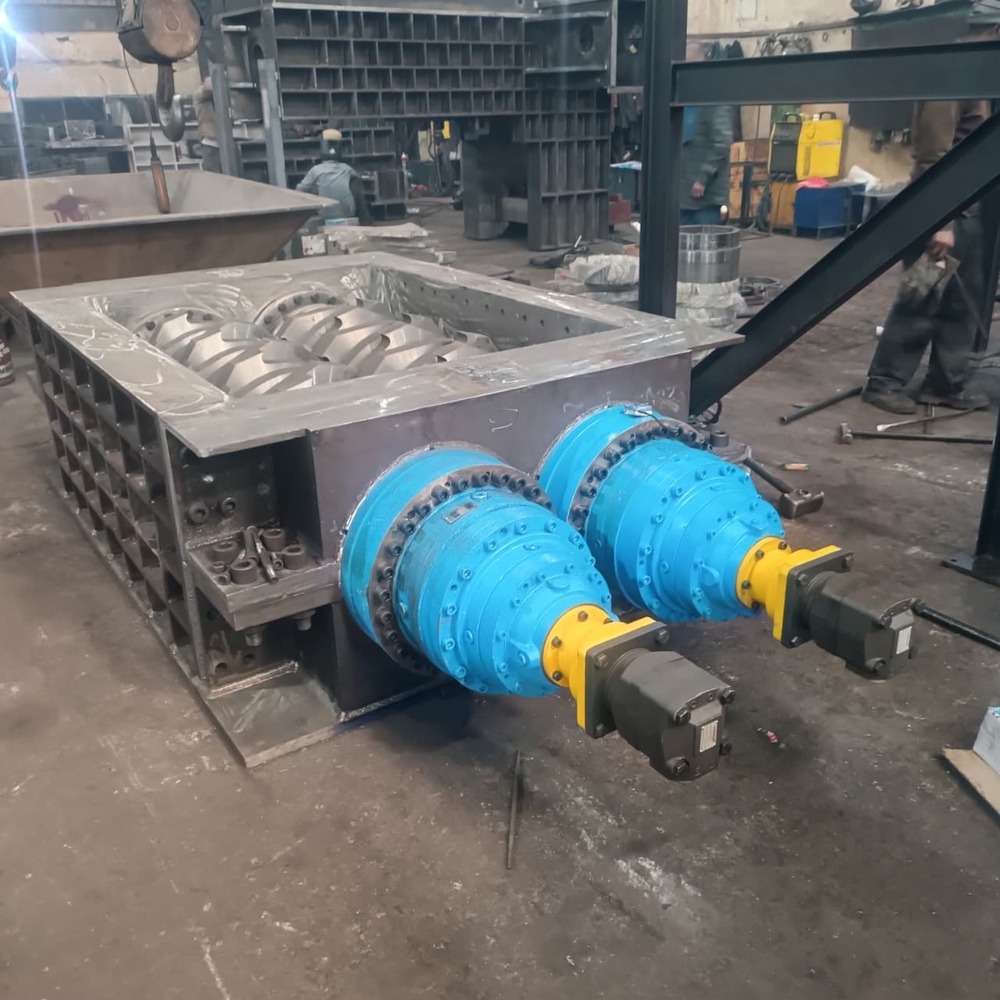

Planetary Gearbox For Shredder
