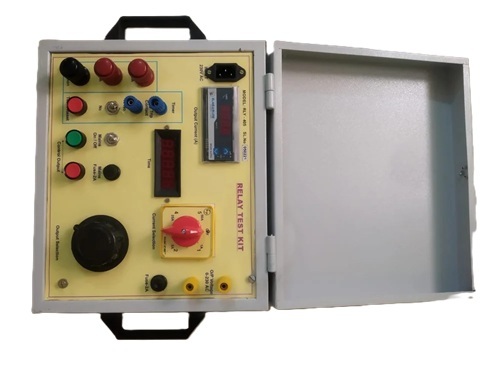

Over Current Relay Test Kit
Price:
Get Latest Price
In Stock
Product Specifications
| Weight | 25 kgs |
| Display | LED |
| Timer | 5 digit |
| Inputs | Two |
| Outputs | Five |
| Current range | 0-240A |
| Voltage range | 0-240V |
| Features | Versatile testing, Accurate readings, Easy operation, Durable design, Multi-range timer, Overload protection, Multiple outputs |
Product Overview
Key Features
We are Exporting, Manufacturing and Supplying Over Current Relay Test Kit from Chennai.
FEATURES: Single Kit with Three units
Two separate inputs & five outputs
Test outputs available:
Unit - I : 0 to 100 A, AC, 0 to 240 volts AC
Unit - I : 0 to 240 V DC separate 2A
Unit - II: 0 to 2 A AC, 0 to 240 volts AC and aux.
0 to 240 volts DC.
Panel with clear and easy to follow legend.
Built in Timer for testing relays and circuit breakers.
Overload protection.
Independent Digital readouts of current, voltage and time.
The kit can be used for all types of relays (current and voltage relays / Low current C.T) except 6 current differential relay & Distance relays
5 Digit, 12 mm LED, crystal time base.
One five digit timer with toggle selector for NO/NC (for checking the opening and closing time) in milli second. The four position timer selection is provided for auto ranges (NO/NC test terminals, reset push button are also provided)
Multi-range: a) 99.999 seconds
b) 999.99 seconds
c) 9999.9 seconds
d) 99999. seconds
The timer will stop on getting the signal from the relay. When the timer stops the current and voltage output is de - energized
Separate pair of test terminals (Relay trip contacts) is provided
Weight : 25 kegs. approx
FEATURES: Single Kit with Three units
Two separate inputs & five outputs
Test outputs available:
Unit - I : 0 to 100 A, AC, 0 to 240 volts AC
Unit - I : 0 to 240 V DC separate 2A
Unit - II: 0 to 2 A AC, 0 to 240 volts AC and aux.
0 to 240 volts DC.
Panel with clear and easy to follow legend.
Built in Timer for testing relays and circuit breakers.
Overload protection.
Independent Digital readouts of current, voltage and time.
The kit can be used for all types of relays (current and voltage relays / Low current C.T) except 6 current differential relay & Distance relays
5 Digit, 12 mm LED, crystal time base.
One five digit timer with toggle selector for NO/NC (for checking the opening and closing time) in milli second. The four position timer selection is provided for auto ranges (NO/NC test terminals, reset push button are also provided)
Multi-range: a) 99.999 seconds
b) 999.99 seconds
c) 9999.9 seconds
d) 99999. seconds
The timer will stop on getting the signal from the relay. When the timer stops the current and voltage output is de - energized
Separate pair of test terminals (Relay trip contacts) is provided
Weight : 25 kegs. approx
