Orifice Meter Discharge - Clear Acrylic Tank, 13mm Sharp-edged Orifice, Seven Interchangeable Profiles | Precision Jet Velocity Measurement, Educational Software Option
Get Latest Price
Minimum Order Quantity :
1 Piece
Brand Name :
Edutek
In Stock
Product Specifications
| Temperature | 0AdegC to 50AdegC |
| Mounting Type | Bench-Top / Table-Top |
| Measuring Range | Discharge can be measured from 0.5 to 40 lps |
| Operating Voltage | N/A (or 230V AC if digital) |
| Test Range | Varies with orifice and pressure head (typically 0-40 lps) |
| Gas Pressure | Ambient / As per test requirements |
| Equipment Type | Orifice Meter Discharge Apparatus |
| Display Type | Scale Reading / Optional Digital |
| Usage | Engineering Testing Equipment |
| Number of Specimens | Single |
| Application | Engineering Testing Equipment |
| Features | Durable, Easy to Operate, Corrosion Resistant, Transparent Flow Section |
| Power Supply | Not Required (Mechanical) / Optional Digital |
| Automation Grade | Manual |
| Humidity | Operates in 0-95% non-condensing |
| Accuracy | A+-1% of full scale |
| Product Type | ORIFICE METER DISCHARGE |
| Max Height | Approx. 70 cm |
| Response Time | Instantaneous (Mechanical) / <2s (Digital) |
| Resolution | 0.01 lps |
| Interface Type | Manometer Tubes / Digital Interface Optional |
| Port Size | Inlet/Outlet: 25 mm (1), 40 mm (1.5), 50 mm (2) |
| Specimen Size | Standard pipeline fittings as per test setup |
| Capacity | Upto 40 lps (depending on orifice size and test head) |
| Machine Weight | Approx. 10-12 kg |
| Control Mode | Manual |
| Payment Terms | Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C) |
| Packaging Details | Carton Box, Export Quality also Available |
| Main Export Market(s) | Asia, Middle East, Africa |
| Main Domestic Market | All India |
| Certifications | ISO 9001, 14001, CE |
Product Overview
Key Features
ORIFICE METER DISCHARGE

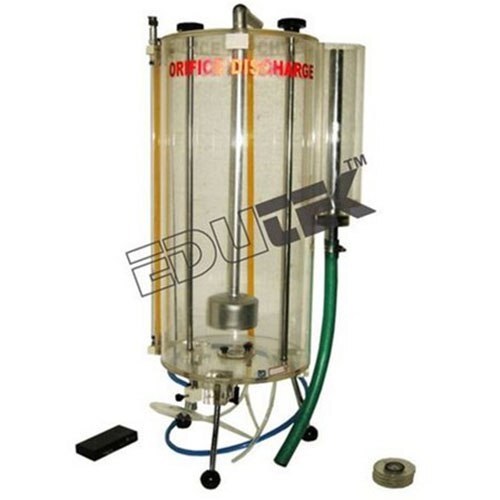

The Orifice Discharge accessory consists of a cylindrical clear acrylic tank which has an orifice fitted in the base. A traverse assembly is provided which enables a piton tube to be positioned anywhere in the jet. Attached to this piton tube is a fine wire which can be traversed across the jet to accurately measure the jet diameter and the vena contract diameter and so determine the contraction coefficient.
The piton head and the total head across the orifice are shown on manometer tubes adjacent to the tank. In addition to the sharp edged orifice six additional orifices with different profiles are supplied. All orifices have a common bore of 13 mm for direct comparison of performance.
Demonstration Capabilities:-
Determining the contraction and velocity coefficients
Calculating the discharge coefficient
Technical Specifications:-
Cylindrical clear acrylic tank with orifice fitted in base
Seven interchangeable orifices
Piton tube and wire-on micrometer to measure jet velocity and diameter
Quick-release fitting for easy connection to Hydraulics Bench
Educational software available as an option
Traverse mechanism: Lead screw with adjusting nut calibrated 0.1mm per division
Standard orifice: Sharp-edged 13mm diameter
Max head: 365mm
