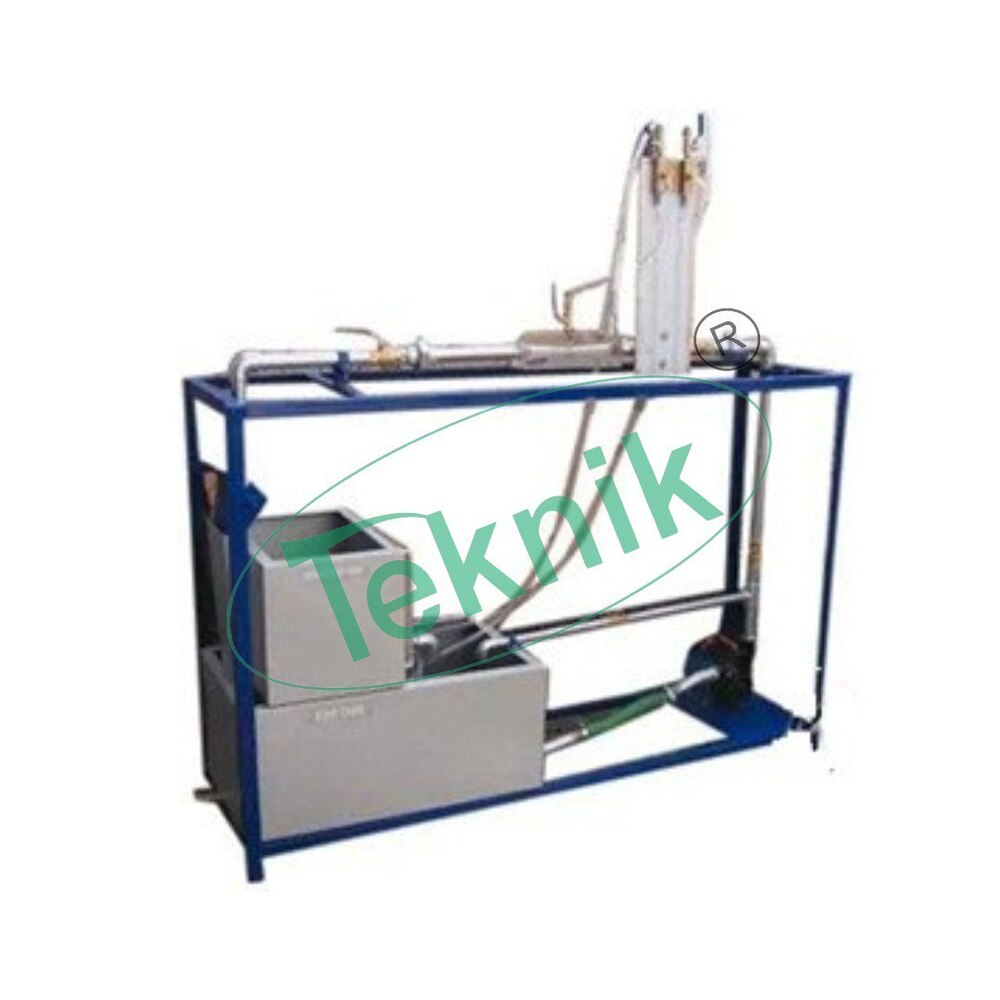

Nozzle Meter Test Rig Apparatus - Application: Fluid Mechanics Equipment

The apparatus consists of a Nozzle meter. The flow can be regulated by the valve provided at the downstream Present set-up is self-contained water re-circulating unit, provided with a sump tank and a centrifugal pump.
Flow control valve and by-pass valve are fitted in water line to conduct the experiment on different flow rates. Flow rate of water is measured with the help of measuring tank and stop watch Experiments To measure discharge through Nozzle meter and to calibrate it Utilities Required Electric supply 0.5 kW, 220 V AC, Single Phase Water supply Tap water connection.
Experiment
To determine the co-efficient of discharge for nozzle meter at different flow rates.
Requirements
Consisting of Transparent acrylic Nozzle meter,
Manometer and Piezometer,
0.5 hp pump,
Sump tank and delivery tank,
Pressure tapping valves and controlling valves.
