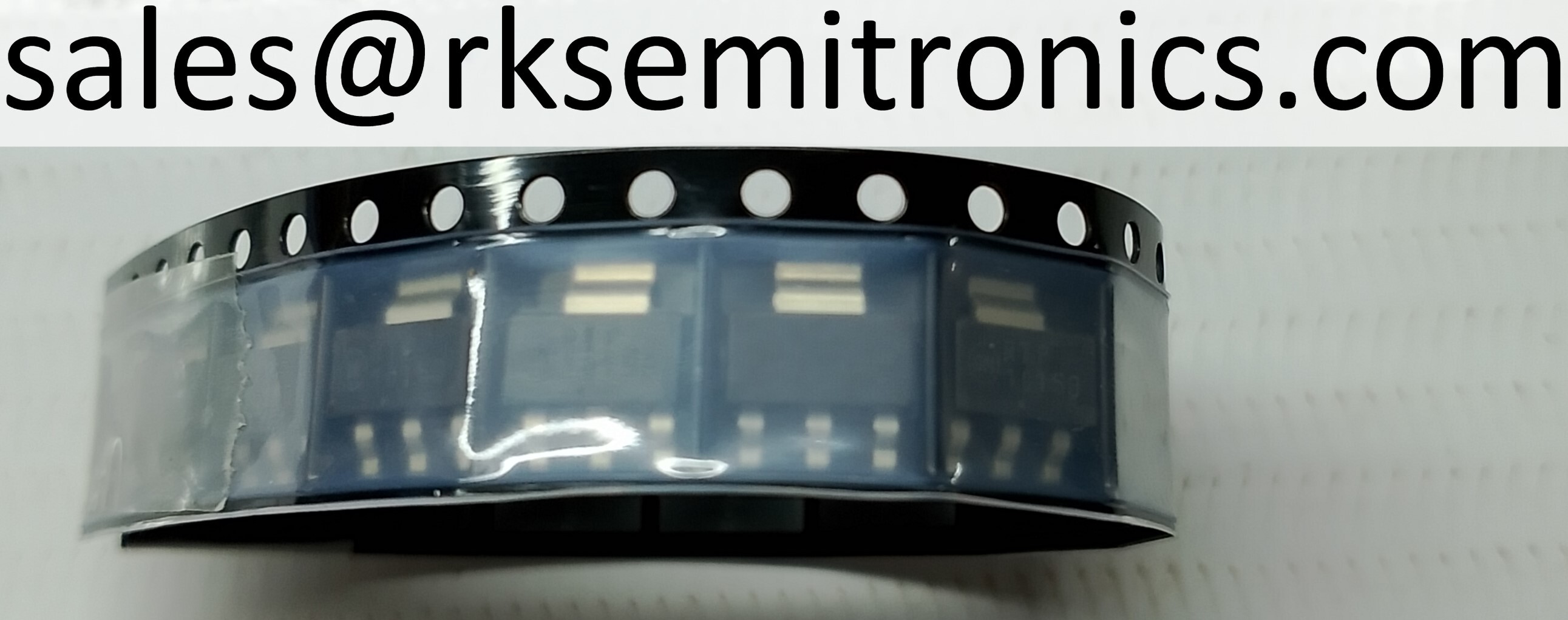

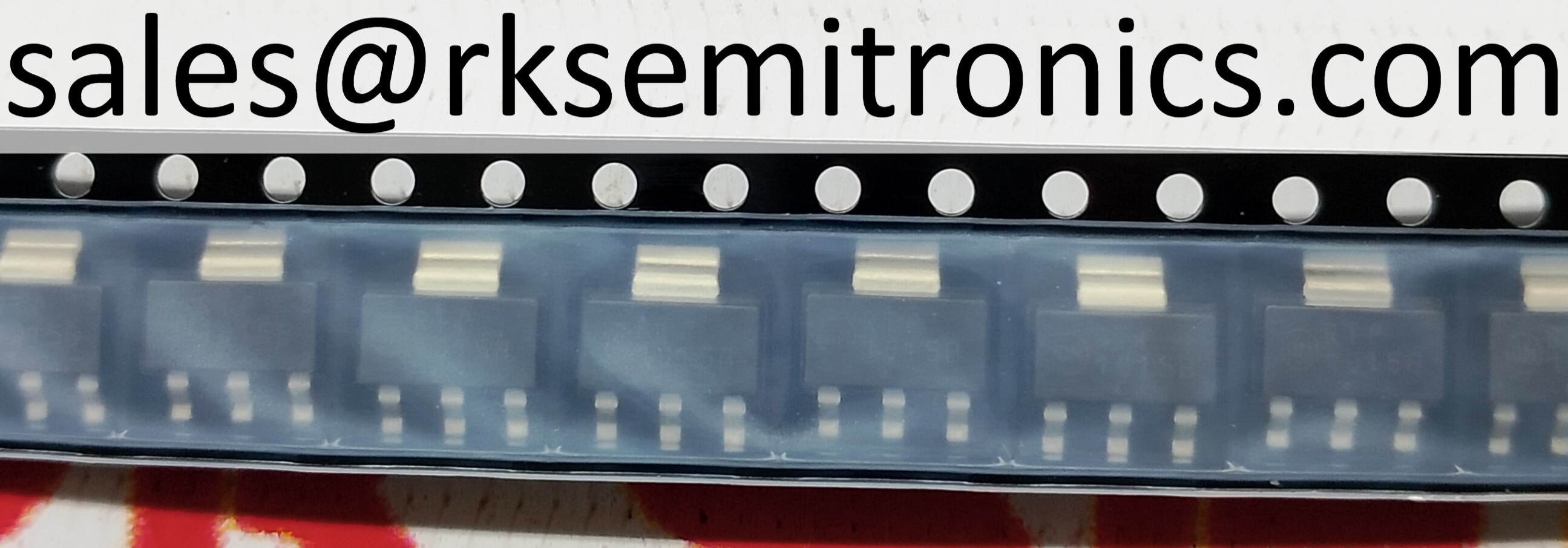

Ncp1015st100t3g Switching Controller - Application: Small & Efficient Ac-dc Converters
Price: 165 INR / Piece
Get Latest Price
Minimum Order Quantity :
35 Piece
Brand Name :
Onsemi
In Stock
Product Specifications
| Thermal Conductivity | See datasheet for thermal ratings |
| Components | Integrated PWM Controller IC |
| Usage | Switch Mode Power Supplies (SMPS), Power Adaptors |
| Power Supply | External (as per circuit design) |
| Output | PWM Signal Output for Driving MOSFET |
| Interface | 3-Pin or 4-Pin Package Interface |
| IP Rating | Not Rated |
| Input | AC/DC input as per power supply configuration |
| Operating Temperature | -40C to +150C |
| Power Source | External Input (via Power Supply) |
| Response Time | Fast switching <200 ns |
| Features | Integrated Startup, Overload Protection, Thermal Shutdown |
| Product Type | Current Mode PWM Switching Controller IC |
| Application | Small & Efficient AC-DC Converters, Offline Power Supplies |
| Rated Voltage | 700V |
| Supply Voltage | 9V to 16V (Vcc) |
| Size | SOT-223 Package |
| Dimension (L*W*H) | 6.5 x 3.5 x 1.2 mm (typical) |
| Function | Integrated PWM Switching Controller |
| Color | Black (Standard IC Molded Package) |
| Weight | Approx. 0.05g |
| Capacity | N/A (IC) |
| Thickness | 1.2 mm (typical for SOT-223 package) |
| Current Rating | Up to 250mA Source Current |
| Frequency | 100 kHz Switching Frequency |
| Supply Ability | 1000 Per Month |
| Delivery Time | 10 Days |
| Main Domestic Market | All India |
