Multi Axis Load Cell

Multi Axis Load Cell

Monad Electronics Multi Axis Load Cells are designed to measure a multiple of forces and moments simultaneously with a single Load Cell.

Multi Axis Load Cells can accurately measure up to six components (3 forces and 3 moments) of load. For example, Independent strain gauge bridges are used to measure three directions of force: Longitude, Latitude, and Vertical, as well as, the moments about each force direction. Separate receptacles or cables are provided for each axis of measurement. A careful structural analysis has been done to isolate the forces and moments, which results in a reduction of cross-talk sensitivities.

All designs are one piece flexures, machined and gauged to give optimum output, stiffness and durability. One of our innovative designs, the Stick Shift/Gear Shift Knob Transducer offers a lightweight, robust feature and comprised of stainless steel.
Features:
Made of high strength Stainless steel construction
Measures torque and thrust simultaneously
High stiffness
Low Cross Talk
Temperature compensated
May be used for fatigue testing machines, tire uniformity testing and many other automotive testing applications.
Multi Axis Bi-Axial Load Arm

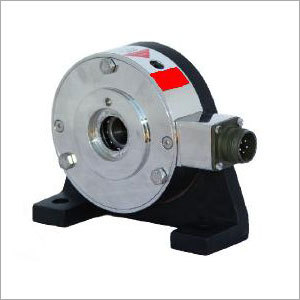

Torque and Tension Biaxial Sensor
Multi Axis Tri-Axial Load Cell
Multi Axis Low Profile Thrust and Moment Pancake Sensor (Tension Base included)
Multi Axis Tri-Axial:
