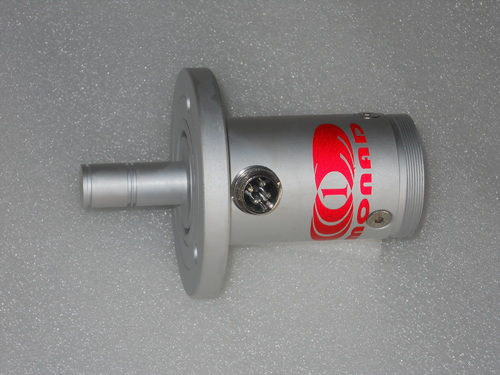

Web Tension Transducers

Monad Web Tension Transducers measure web tension forces applied across a roll, using integral horizontal and vertical axis sensors. This innovative and exclusive two-dimensional approach to web tension force measurement enables accurate determination of the true resultant force, as well as the applied angle. Not only does this permit installation and measurement at any mounting angle or roll orientation, it also combines to form an expert diagnostics system that produces the highest level of web tension measurement confidence available today. The Load ecll is machined from a high strength corrosionresistant stainless steel to yield a low profile single piece construction that incorporates tubular sensing sections at each end.

Advantages
1.Two full Wheatstone Bridges are mounted internally to each sensor and provide] output signals in the X and Y plane hat are externally, vectorially summed to determine the magnitude and direction of the resultant force.
2.Each bridge is functional to 121A C, and dead weight calibrated for precision accuracy.
3.The cylindrical sensing sections are sealed to meet IP67 requirements.
4.Environmental sealing ensures long-term reliability for humid, wet, or wash down locations
5.Wide range
6.Space effective.
7.High overload limit
8.High accuracy and repeatability
9.Suitable for both live and dead shaft rollers.
10.Ideal for low to High tension applications
11.Built-in low friction, self-aligning bearings.
