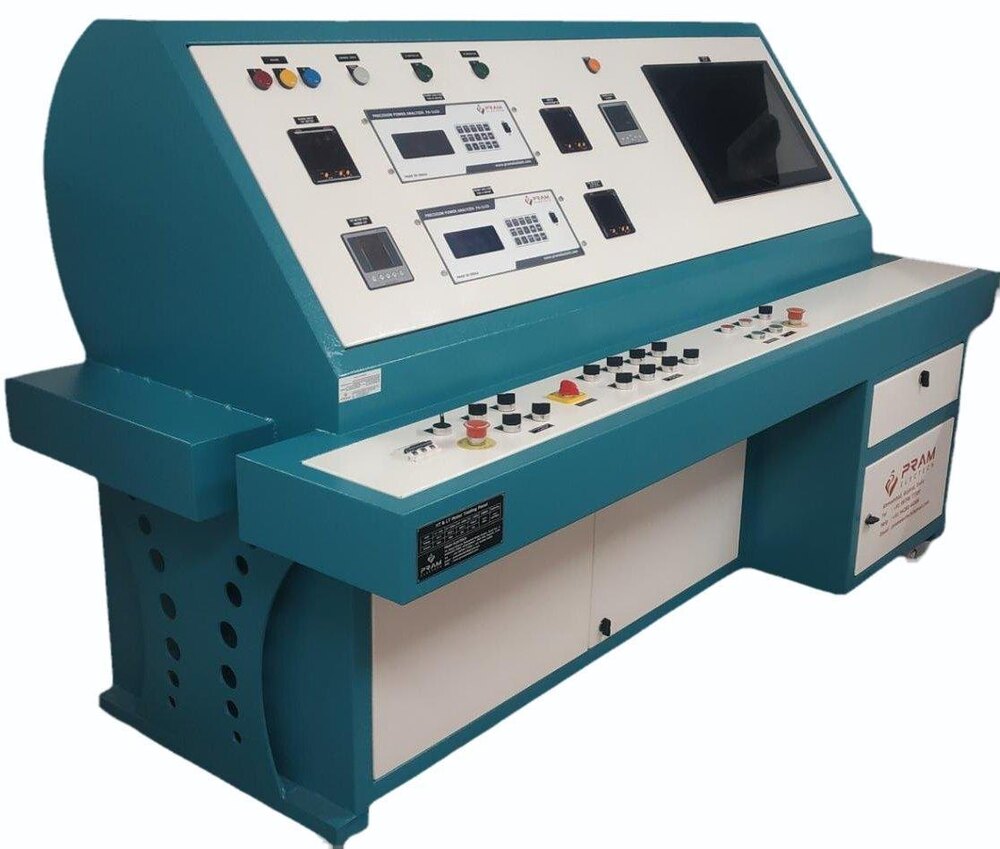

Mtp-30 Motor Testing Panel - 50a Capacity, Mild Steel, 36x24x48 Inch, Semi Automatic Operation | Industrial Motor Testing, 440 Volt Power Supply, Fast Test Speed, White Color, 150kg Weight

Sr. No.NameSpecificationItem Descriptions
1.MotorTesting PanelRoutine Testing Panel for Induction Motor
415V, 50AVIF Meter Setting
For CT P :- Set 50A(Mains Supply)
For PT P :- Set 350V(Mains Supply)
For PT S:- Set 350V(Mains Supply)

2.Over Current Relay SettingsDOL M1 Output
0.12KW-0.18KWFor CT.P :- Set 10A | CT S :- Set 5A (Default)
For SOC :- Set 0.8A | Trp :- Set 2 Sec
3.Over Current Relay SettingsDOL M2 Output
0.25KW-3KWFor CT.P :- Set 10A | CT S :- Set 5A (Default)
For SOC :- Set 7A | Trp :- Set 2 Sec
4.Over Current Relay SettingsDOL M3 Output
4KW-11KWFor CT.P :- Set 30A | CT S :- Set 5A (Default)
For SOC :- Set 20A | Trp :- Set 2 Sec
5.Over Current Relay SettingsDOL M4 Output
15KW-22KWFor CT.P :- Set 50A | CT S :- Set 5A (Default)
For SOC :- Set 37A | Trp :- Set 2 Sec
6.Power AnalyzerVoltage:- 600 VAC
Current:- 80 AAC
Phase:- 3-Phase3-Phase Power Analyzer 600V (Phase Neutral) & 1050V (Phase to Phase) & 80A Direct Measurement with accuracy of 0.1% rdg + 0.1% rng
7.Break Output5A415V 5A AC, 230V 5A AC, 110V 5A AC, 24V - 5A DC
