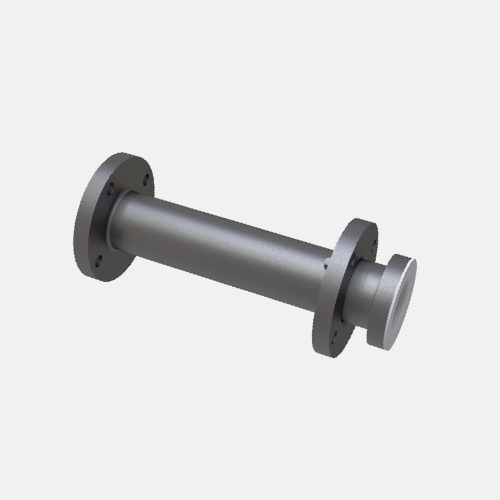

Ms Ptfe Lined Spool Pipe

We make pipe spool of size range up to DN-300 and a maximum length of 6000mm. These spool pipes are seamless in which the PTFE liner is thermally locked from inside & flared at ends conforming to ASTM A 106 sch-40 conforming to ASTM F 1545 suitably provided with vent holes to prevent liner failure against different temperature and pressure and vacuum conditions. These lined spool pipes can be supplied with lose or fixed flange design to any drilling specification such as ASA 150#, 300#, PN10, PN16. As a solution to customer's applications Jacketed Lined Pipes can also be made on requirement.

HOUSING MATERIAL
Pipe : 1. Seamless Carbon Steel ASTM A 106 Gr.B.Sch-40
2. ASTM A 312 TP 304,Sch-40
Flanges : 1. Made from IS 2062 Plates/ASTM A 105
2. ASTM A 351 Gr.CF 8
Liner : PTFE in accordance with ASTM D 1457
OPTIONS

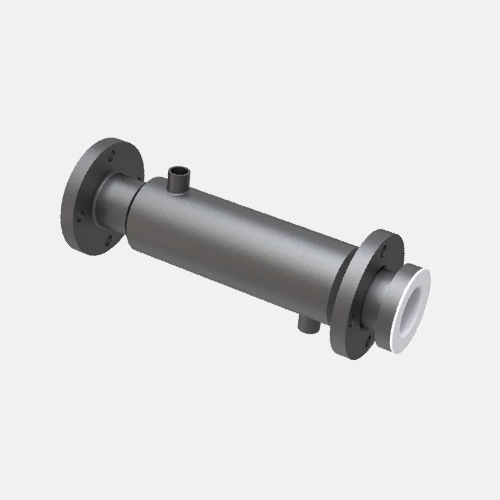

Pipe : Jacketed Spool Pipe can be supplied on request
Flanges : DIN PN 10 / 16, BS 10, ASME 300, Mixed
Extras : Earthing Studs / Lugs, Vent Extensions
Material : MS/SS
Liner : HDPE / PTFE / ANTISTATIC
NOTE
Special heavy duty PTFE Liners available for full vacuum. Details can be provided on request. Other Flange Drilling like DIN 2632 / 2633, BS 10 Table D, E or F are also available on request. Tolerance : A 3.5 mm ( 0 to 1mtr.) and A 5.0mm (1 to 3 mtr.) Clear ID for HDPE/PTFE Lined Pipes (DN/ID ) : 25/18, 40/32, 50/42,65/57, 80/67.

TEST & INSPECTION DATA
Resins are conforming to the requirements of ASTM F 1545-97(2003)

Hydraulic Test : 20 Kg / Cm2 After Lining
Spark Test : 20 KV D.C After Lining
Vent Extensions
When the lined piping system will be lagged, please specify that the spools and fittings should be supplied with vent extensions, these 75mm long extension protrude through the lagging allowing the correct venting of the lined equipment.

Venting
All lined piping systems must have vent holes drilled through the steel body. This is for 2 reasons, firstly to vent any gasses that may permeate through the liner which can be detrimental to liner life to the atmosphere rather than allow them to build up behind the liner trapped within the steel pipe. Pipe spools less than 500mm have 2 off vent holes located centrally, longer spools have 4 vent holes 1 pair located at each end.
