Ms Pipe 24 Inch - Application: Water And Sewage Transport: Used In Municipal Pipelines For Water Supply And Drainage Systems. Oil And Gas Pipelines: Suitable For Low-pressure Oil

Product Name:

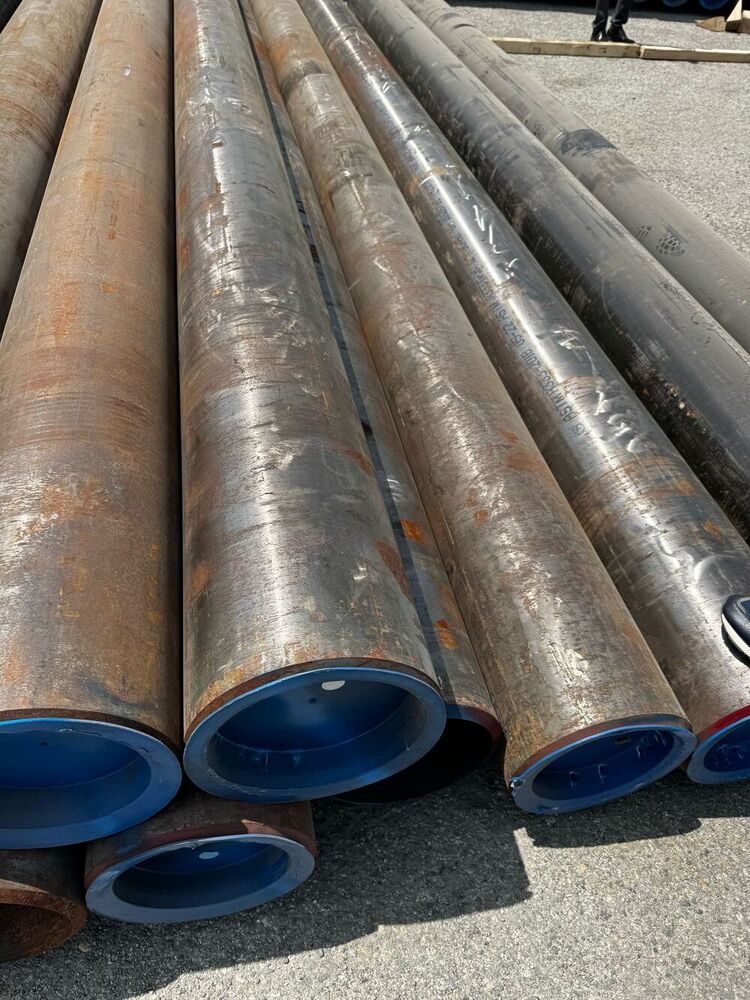

MS Pipe 20 Inch (508 mm OD)

Product Description:
The 20-inch MS Pipe with an outer diameter of 508 mm is a heavy-duty, high-strength pipe manufactured from mild steel (low carbon steel). Designed for use in structural, industrial, and fluid transport systems, it offers excellent durability, weldability, and cost-effectiveness for both above-ground and underground applications.

Technical Specifications:
Outer Diameter (OD): 508 mm (20 inches)

Material: Mild Steel (Low Carbon Steel)

Wall Thickness: As per requirement (e.g., SCH 20 / 40 / 60 / 80 or custom)

Length: 6 meters, 12 meters, or custom-cut

Manufacturing Type: ERW (Electric Resistance Welded), SAW / LSAW, or Seamless

Ends: Plain Ends, Beveled Ends, or Threaded (on request)

Surface Finish: Black (bare), Hot-Dip Galvanized, or Painted (Red Oxide / Bitumen)

Available Standards / Grades:
IS 3589 (Fe 330 / Fe 410) for water, gas, and structural use

ASTM A53 / A106 (Grade A/B) for pressure and high-temperature use

API 5L (Grade A/B, X42 to X70) for oil and gas pipelines

EN 10219 (S235 / S275 / S355) for structural applications

Key Features:
Strong and reliable for heavy-duty applications

Excellent weldability and fabrication properties

Suitable for protective coatings and galvanization

Long service life and corrosion resistance (when coated)

Smooth bore for efficient flow of fluids or gases

Applications:
Water supply and sewage pipelines

Oil and gas transmission (onshore and offshore)

Piling and foundation works

Structural columns and supports

Industrial processing systems

Fabrication of large frameworks and machinery
