Mobile Tower Scaffolding

Mobile Tower Scaffolding

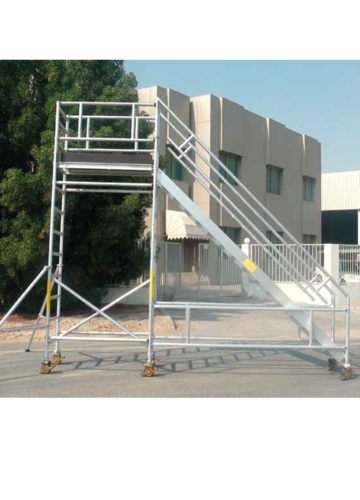

Double width aluminum mobile tower scaffold with stair

All pipes are made up of aluminum alloy he 30 grade t6 temper.
hindalco make : step made up of 50mm od 2. 5mm thickness
h frame height 2000mm width 1350 mm
cabin height 1000mm width 1350 mm
platform size 580mm x 1690 mm with aluminum chequred sheet
stairway tube size 25mm x 75mm height 2500mm 8 steps width 3 a
hand rails / horizontal bar/ diagonal bar dia 50mm x 2mm thickness
gi a ua clamp, nylon wheels with foot brake systems
outer trigger for four side corner (if necessary)
non slip, extra grip flat corrugated mullion steps
high quality leg grip chequred sheet for top of the platform
maximum working load : 270 kgs

Available height

platform height 0. 2m x reaching height 4. 2m
platform height 4. 2m x reaching height 6. 2m
platform height 6. 2m x reaching height 8. 2m
platform height 8. 2m x reaching height 10. 2m
platform height 10. 2m x reaching height 12. 2m
platform height 12. 2m x reaching height 14. 2m
platform height 14. 2m x reaching height 16. 2m


Platform size

platform 2 meter x 1. 350 meter
