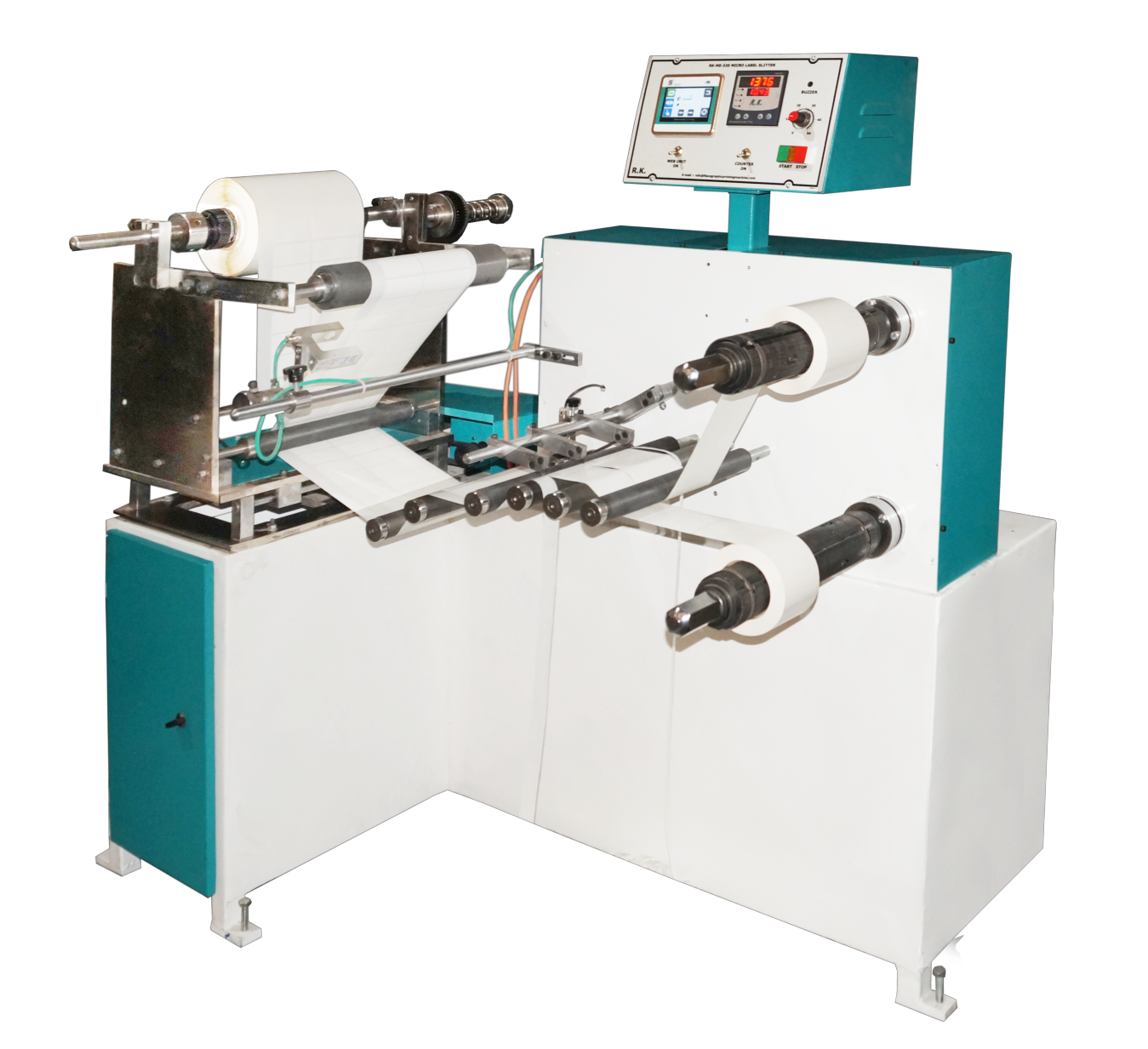

Micro Printed Label Slitter Machine - 1 Hp Capacity, 320 Mm Maximum Paper Width | Semi-automatic, Auto Metering, Electronic Web Guide, 1 Year Warranty

ROLL TO ROLL MICRO LABEL SLITTER SIZE- 12
Maximum Paper Width: 320 mm
Unwinding Unit Roll 600MM Maximum with 3 Manual Shaft
Unwinding Unit Tension Controlled by Mechanical Brake System
Electronic Web Guide for Paper Movement on Unwinding Side (IMPORTED: ULTRASONIC BASED SYSTEM)
Normal Shear Blade Slitting attachment with Grooved Base Roll
Up & Down Rewinding System
Rewinding Unit Tension Controlled by Mechanical Clutch System
1 HP AC Variable Speed Control Motor
Motor Operated by Variable Frequency Drive (Brand: Schneider)
Digital meter Counter unit for label counting & Meter counter with Auto Stop.
Rewinding Core Size 1, 1.5, 3 Changeable with collator (Each 2 Pcs)
Machine Mechanical Speed 60 m/min
Power Consumption 1 HP Single Phase
Height 5.5 Ft, Width.4 Ft, Length 5 Ft
