Metal Lug Capping Machine - 10x12x20 Inches, 230vac, 50hz | Pneumatic Clamping, Speed 20 Bpm, Model Blenzor Lug-50

In order to fulfill the diverse requirements of our valuable clients, we are involved in exporting, manufacturing and supplying of Lug Capping Machine in Mumbai, Maharashtra, India. This LUG Capping Machine is known for its speedy performance with high efficiency. To get the maximum satisfaction of the customers, we provide this product at industrial leading price.

Suitable for Pickle,Jam,Honey bottles
20 Bottles Per Minute

Suitable for Pickle, Jam,Sauce Bottles
Speed- 20 Bottles Per Minute

LUG Capping Machines helps in simple operation.
This simple operation is possible due to the pneumatic clamping and tightening of caps to the bottle mouth.
Placing the caps on bottles is done manually and these machines also perfect tightening of caps.

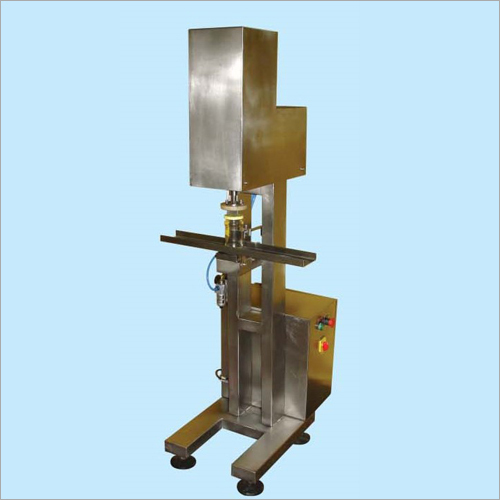

lug capper-automatic 1.jpg
Specifications:
Output : 20 Bottles Per Minute
Machine model : BLENZOR LUG-50
Foot switch operated machine
Pneumatic cylinders : 50mm diameter x 50mm stroke for clamping, 6.25mm diameter x 25mm stroke for cap tightening
Any bottle size can be capped by this machine
Overall dimensions : 10 width x 12 length x 20 height
Total weight : 45kgs approx.
Air pressure required : 5bar (5 kg/cm2)
Power supply required : 230 VAC, 50Hz, less than 0. 5 kWh
Solenoid valve provided for actuating cylinders.
