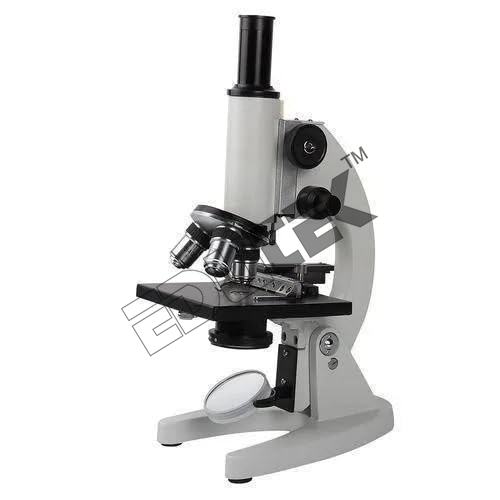

Medical Microscopes - Coarse Adjustment Range: 15 Mm

Price:

Get Latest Price

Minimum Order Quantity :

1 Piece

Brand Name :

Edutek

In Stock

Product Type	Medical Microscopes
Spare Parts	Eyepiece, Objective Lens, Mirror, Bulb
Material	Mild Steel
Usage	Laboratory
Focus System	Coarse & Fine
Features	Stable Metal Body, Fine Precision, Student and Laboratory Use
Application	Research Microscope
Theory	Other
Drawtube	Monocular
Focal Distance	160 mm Millimeter (mm)
Magnification	100x to 1500x
Dimensions	340 mm x 170 mm x 110 mm Millimeter (mm)
Focus Range	Coarse and Fine Adjustment Millimeter (mm)
Eyepieces	10x WF, 15x WF
Eyepiece Tube	Inclined at 45 , Rotatable 360
Illumination	Mirror with Substage Condenser, Optional Electric Bulb
Coarse Adjustment Range	15 mm
Fine Adjustment Range	0.002 mm Precision
Working Stage	Mechanical Stage, 120 mm x 120 mm Square Millimeter (mm2)
View Head	Monocular, 360 Rotatable
Objective Achromatic	Achromatic 10x, 40x, 100x (Oil)
Condenser	Abbe Condenser NA 1.25 with Iris Diaphragm
Light Source	Reflector Mirror or 20W LED Bulb (Optional)
Payment Terms	Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)
Sample Available	No
Sample Policy	Sample costs shipping and taxes has to be paid by the buyer
Packaging Details	carton box, export quality also available
Main Export Market(s)	Asia, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market	All India
Certifications	ISO 9001, 14001 ,CE
