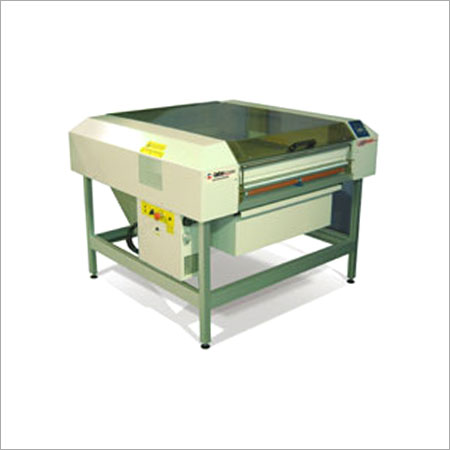

Laser Cutting Machine - Co2 Laser, 1200x900mm To 1500x1000mm Working Area | Height-adjusted Laser Head With Auto-height Sensing, 3d Material Capability

We are remarkable entity, who offer superior assortment of laser cutting machine.
Main Features
1a MLS-X3D is Bodora s first machine to gain national patent.It can engrave and cut according to the height of the material.
2a The machine with height-adjusted laser head and height sensing device can sense the height change of the working material.Also it can adjust the height of laser head immediately according to ups and downs of the material.It perfectly adjust to engrave and cut 3D materials.
3a The laser head servo system adopts screw transmission with high accuracy, can process objects undulating height within 60mm (heigh can be customized t).
4a Processing a wide range of materials, any material can be processed.
5a Optional up&down platform, can process objects height of 400 mm (height can be customized)

Technical Parameter
Adjust the height of laser head automatically


ModelMLS1309X3DMLS1610X3DOption
Working Area1200*900mm1500*1000mmAccording to Demands
Laser head up&down height60 mm (customizable)
Laser Power60w/80w / 100w / 130w / 150w/ 300w
Laser TypeCO2 Sealed Laser Tube,10.6I m
Cooling TypeWater Cooling
Cutting Speed0a 20000mm/min
Laser Output Control0a 100% Software Setting
Smallest Character Engraving2.0*2.0mm1.0*1.0mm / English 1.0mm*1.0mm
Highest Scanning Precision4000DPI
Locating Precisiona +0.01mm
Controlling SoftwareDSP Control System
Graphic Format SupportedDST PLT BMP DXF DWG AI LAS,etc
