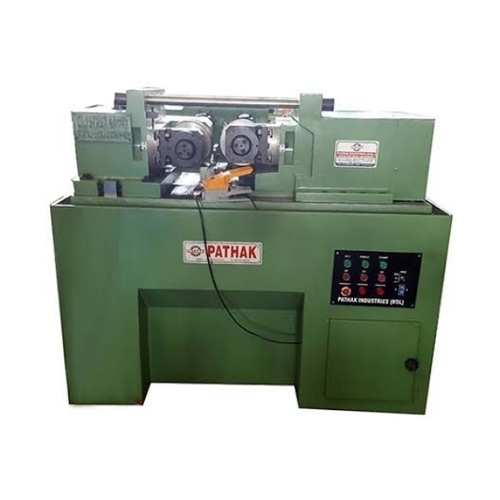

Hydraulic Spline Rolling Machine

Our firm is Manufacturing and Supplying a broad assortment of Hydraulic Spline Rolling Machine in Hyderabad, Telangana, India that is offered to clients at most important costs. Additionally, the ranges are exceptionally requested because of its different uses in suitable provisions.

Tonnage
20 Ton
24 Ton
30 Ton
40 Ton
Maximum roll diameter
200
200
200
200
Bore size
54/69.85
69.85
69.85
69.85
Max. Roll width
125mm
125mm
125/150mm
125/150mm
Max. Diameter of the Spline
60mm
65mm
70mm
75mm
Max. Pitch
1/1.25 Module
1.25/1.5 Module
1.5/1.75 Module
2/2.5 Module
1.5 Mod. with Helix
1.66 Mod. with helix
1.66 Mod. with helix
1.66 Mod. with helix
Min. Job diameter
6
6
10
10
Max. Spline length
100mm
125mm
150mm
150mm
Max. Job length
350 Standard
400 standard
600 standard
850 standard, More available at extra cost.
Max. Swing of the Job (Flange dia)
100
120
150, more available at extra cost.
175,more available at extra cost.
Connected load (approx.)
11 HP approx.
13 HP approx.
15 HP approx.
18 HP approx.
Floor space
2.2 x 2 meters.
2.2 x 2 meters.
2.2 x 2 meters.
2.2 x 2 meters.
Weight of the machine
3 tons approx.
3.25 tons approx.
3.5 tons approx.
4 tons approx.
