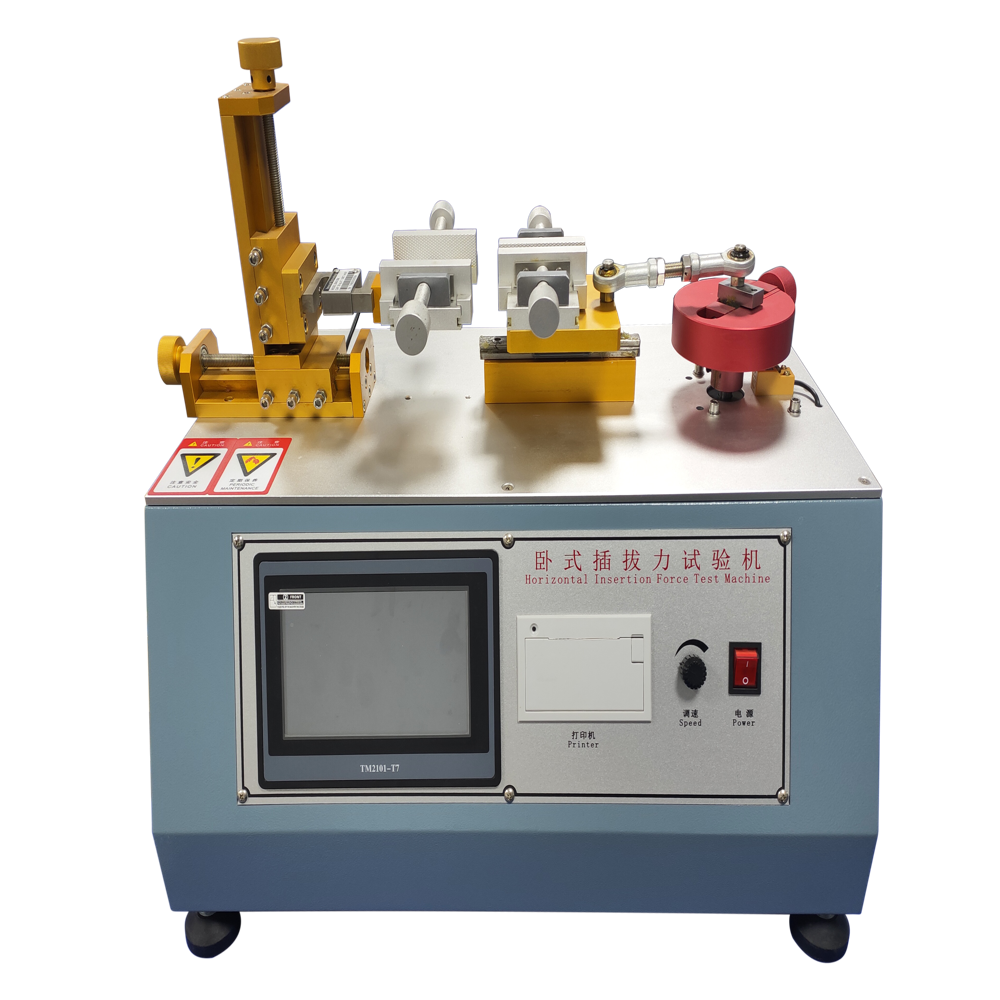

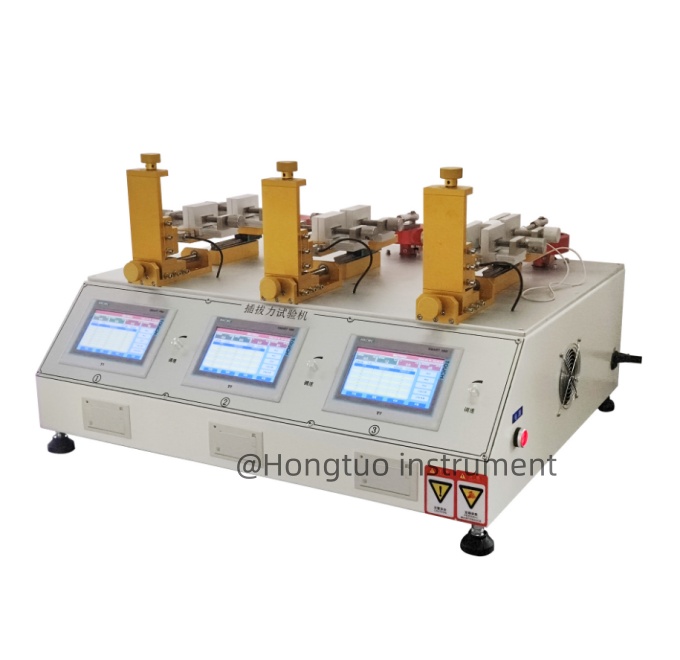

Horizontal Insertion Force Testing Machine For Precision Force Testing
Price: 1041.0 USD / Unit
Get Latest Price
Minimum Order Quantity :
1 Unit
Brand Name :
Hontotest
In Stock
Product Specifications
| Max Height | 350 mm (fixture up) |
| Mounting Type | Bench-top with caster wheels |
| Port Size | Customizable fixture ports |
| Automation Grade | Semi-Automatic |
| Measuring Range | 0.01~50 kgf |
| Frequency | 50/60 Hz |
| Temperature | 10C~40C |
| Resolution | 0.01 kgf |
| Application | Connector/terminal insertion & withdrawal force testing |
| Interface Type | RS-232/USB output |
| Equipment Type | Horizontal Insertion Force Testing Machine |
| Number of Specimens | Single |
| Gas Pressure | 0.4-0.7 MPa |
| Accuracy | 0.5% F.S |
| Humidity | 20%~80% RH |
| Test Range | 0-50 kg (can be customized) |
| Specimen Size | Customizable (Connector/Plug format) |
| Operating Voltage | 220V |
| Features | Force-displacement curve drawing, automatic peak value capturing, printing capability |
| Display Type | Digital Touch Screen LCD |
| Hardness | High strength metal fixture |
| Power Supply | AC 220V, 50Hz |
| Response Time | 1 ms |
| Usage | Laboratory/Quality Control |
| Capacity | 50 kgf max |
| Machine Weight | Approx. 65 kg |
| Test Speed | 10~500 mm/min (adjustable) |
| Test Width | 0-100 mm |
| Test Stroke | 0-100 mm |
| Control Mode | Touch screen program control |
Company Details
We, Guangdong Hongtuo Instrument Technology Co., Ltd., a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester, Gold Testing Machine, Density Meter, Universal Tensile Testing Machine, Climatic Chamber, Melt Flow Index Tester, Charpy Impact Testing Machine, Tap Density Tester, Abrasion Tester, Ultrasonic Flaw Detector, Surface Roughness Tester and other Laboratory Testing Equipment, etc. are our company's USP.
Business Type
Exporter, Manufacturer, Distributor, Supplier, Trading Company
Employee Count
100
Establishment
2000
Working Days
Monday To Saturday
Payment Mode
Telegraphic Transfer (T/T)
Certification
ISO:9001
