High Resilient Coupling

Withstanding the wide competition within this industry, we are engaged in manufacturing and supplying the best quality of High Resilient Coupling. These  couplings are used in all types of industrial plants and machines. Our offered couplings are suitable for drives involving high shock loads. The provided couplings are available for clients in different specifications, with an aim to match with their varied requirements. This High Resilient Coupling is packed in premium packaging and then delivered at the specified place.

Features:

• Installed hubs of longer & shorter lengths

• High resilience


• Can bear high shock load

High Resilient coupling::::::::

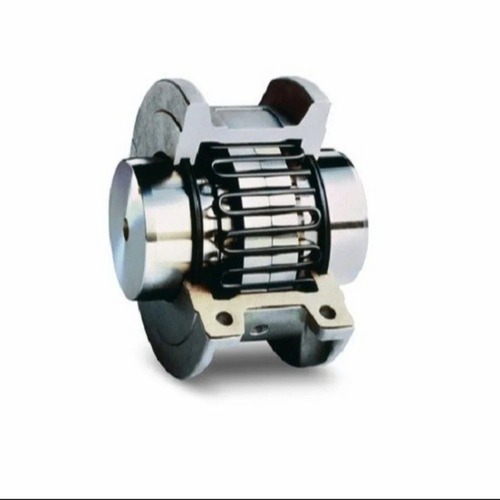

"GBM HI -Torque" Type Resilient Couplings are in use in all types of industrial applications over many years with success. Such a Resilient Coupling comprises mainly two Hubs,Grid Spring and Covers to protect the Spring. The Grid Spring element is so designed that it provides required resiliency for variable flexibility of a Coupling and considerable damping properties making the Coupling very suitable for drives involving high shock loads to the extent of 80%. Misalignment that inevitably occurs between rotating shafts, which are ndependently supported,is also taken care of by the spring element within allowable limits.

Dimensions given in the tables are approximate and pertain to Standard Coupling of GBM range, but tailor-made Couplings with Hubs of longer or shorter lengths, Seals & Grub Screws can also be supplied as per requirement of ndividual customer. Following service information must be furnished with enquires

1. H. P. & R. P.M. of the Drive 2. Types of driving & driven machines 3. Nominal diameters and lengths of shaft extensions of both the machines 4. Dimensional details of finished bores & keyways, if required 5. Any other details relevant to the working conditions of the Drive

Lubrication : Indian Oil "Servogem 2", or, any equivalent grease is recommended for use. For Couplings for high speed and special application, use lubricants as will be recommended individually.

Spare parts : Parts of a Hi-Torque Resilient Coupling of particular type are interchangeable with parts of a Coupling of similar type. While ordering out spare Grid Spring or other parts, the code number/serial number stamped on the Coupling name-plate must be furnished to ensure correct supply.
