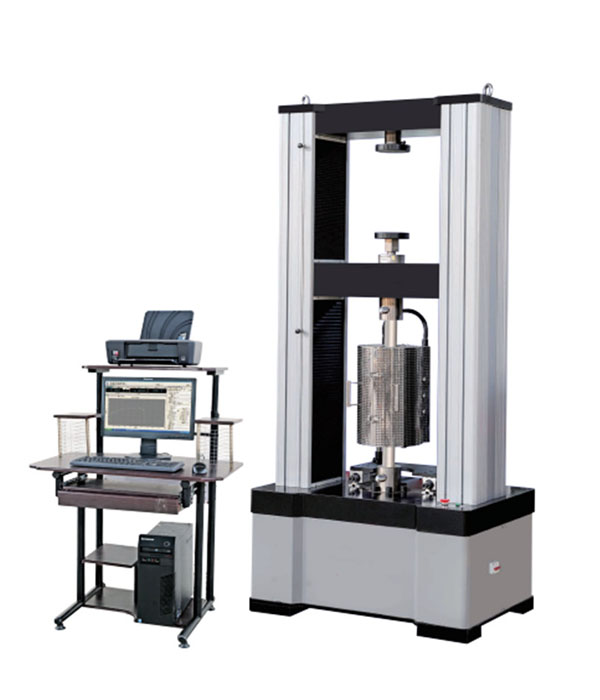

High And Low Temperature Universal Creep Testing Machine
Price: 4000.0 USD / Unit
Get Latest Price
Minimum Order Quantity :
1 Unit
In Stock
Product Specifications
| Frequency | 50/60 Hz |
| Equipment Type | High and Low Temperature Universal Creep Testing Machine |
| Number of Specimens | 1 ~ 8 at a time |
| Humidity | 20% ~ 90% RH (optional chamber) |
| Automation Grade | Automatic |
| Operating Voltage | 220/380V, 50/60Hz |
| Resolution | 0.1 m |
| Features | Programmable temperature control, multi-specimen testing, long-duration stability |
| Power Supply | AC 220V / 50Hz |
| Measuring Range | Full range without interval |
| Response Time | 1 ms |
| Specimen Size | 6 ~ 20 mm (round) / up to 20 20 mm (flat) |
| Interface Type | USB, RS232 |
| Display Type | LCD Digital Display or PC Software |
| Accuracy | Class 0.5 / 1.0 |
| Application | Creep, stress rupture, and relaxation tests for metals and alloys |
| Mounting Type | Floor Standing |
| Temperature | -70C to +500C |
| Gas Pressure | 0.6 ~ 0.8 MPa |
| Max Height | Approx. 1.6 m |
| Port Size | Customizable |
| Test Range | 10 N ~ 50 kN |
| Usage | Creep and rupture life tests under controlled temperature conditions |
| Capacity | 10, 20, 30, 50 kN (optional) |
| Machine Weight | Approx. 350 kg |
| Test Speed | 0.001 - 50 mm/min (adjustable) |
| Test Width | Standard 350 mm |
| Test Stroke | 500 mm |
| Control Mode | Microcomputer Control |
