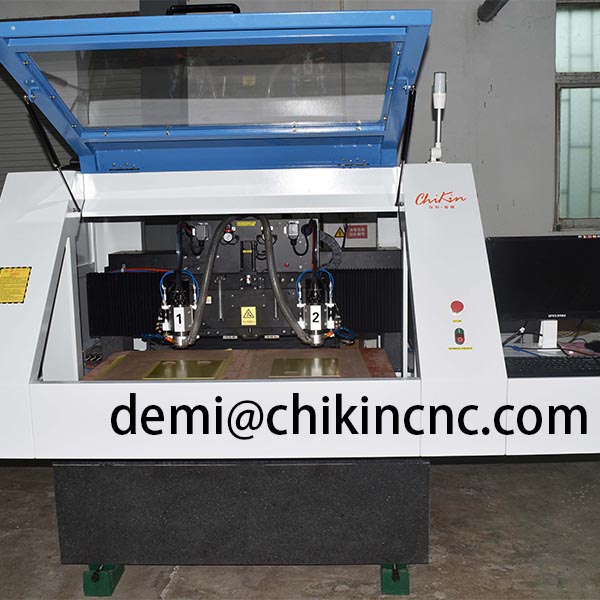

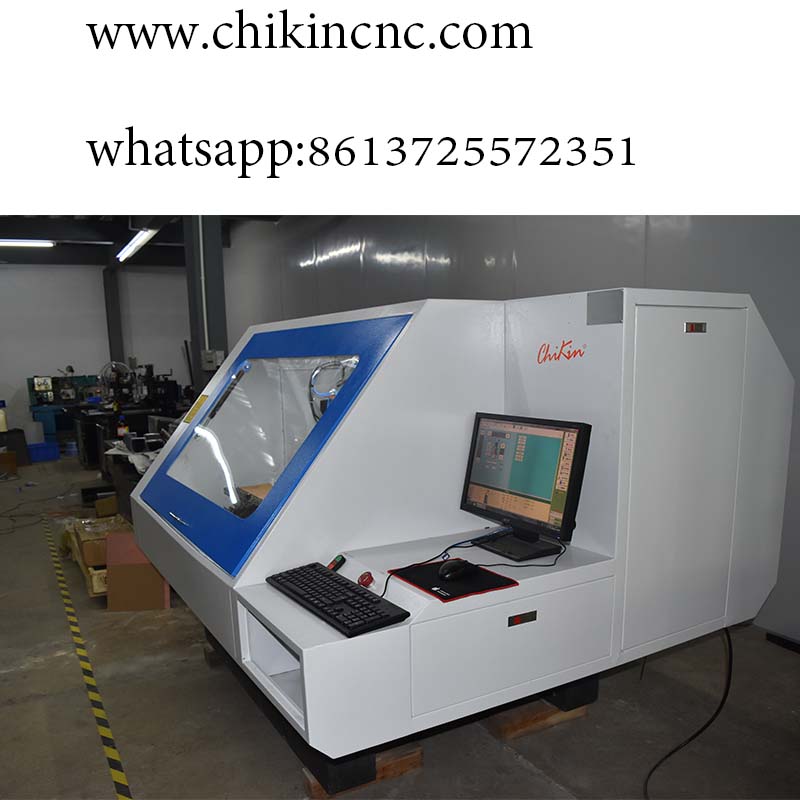

High Efficiency Pcb Drilling Machine By Shenzhen Chikin Automation Equipment Co., Ltd
Price: 25841.00 INR
Get Latest Price
MRP:
32510.00 INR / Pieces
Minimum Order Quantity :
1
Brand Name :
Chikin
Weight :
8600.00 Kilograms (KG)
1 Pack Contains :
1
Minimum Pack Size :
1
In Stock
Product Specifications
| Spindle Number | 1-4 |
| Spindle Speed | 200,000 rpm |
| Spindle Power | 0.85 kW |
| X-Y Rapid Speed | 40 m/min |
| Z Rapid Speed | 30 m/min |
| Repeatability | 0.005 mm |
| Table Dimension | 680*560 mm |
| Machine Material | Granite |
| Drive System | Panasonic |
| NC System | CHIKIN CNC |
| Operating Interface | English/Chinese |
| Tool Magazine Capacity | 200 PCS |
| Drilling Tool Diameter | 6.35 mm |
| Usage | PCB drilling and routing |
| Power Supply | 380V |
| Features | High efficiency, Precision drilling, PCB processing, Automated system, Multiple spindles |
| FOB Port | SHENZHEN |
| Payment Terms | e, r, s, ', ], [, ', O, t, h |
| Supply Ability | 100 Per Year |
| Delivery Time | 60 Months |
| Sample Available | Yes |
| Sample Policy | a, e, o, l, i, c, m, r, [, ', C, o, n, t, a, c, t, , o, r, , i, u, a, t, i, s, , m, l, f, r, n, f, o, o, n, , r, e, g, a, r, n, g, , o, d, i, u, , s, p, , p, y, ', ] |
| Packaging Details | Polywooden case |
| Main Export Market(s) | c, a, A, [, ', A, s, i, a, ', ,, , ', ', N, u, s, t, r, a, l, i, a, ', ,, , ', C, e, n, t, r, a, l, , A, m, e, r, i, ', ,, , o, h, , A, m, e, r, i, c, r, t, a, ', ,, , ', S, o, u, t, h, , A, m, e, r, i, c, a, ', ] |
| Main Domestic Market | [, ', ', ], A, l, l, , I, n, d, i, a |
| Certifications | CE |
| Pkg Box Breadth | 260.00 cm |
| MRP | 32510.00 INR |
| Mop | 1 |
| Packsize | 1 |
| Weight | 8600.00 Kilograms (KG) |
| Shipping Type | free |
| Unit Type | Pieces |
| Price | 25841.00 INR (Approx.) |
| Pkg Box Height | 250.00 cm |
| Stock Quantity | 10 |
| Price Type | fixed |
| Pkg Box Length | 460.00 cm |
| Currency | INR |
| GSTIN | 12% |
| Returnable | No |
| Brand Name | CHIKIN |
| Minimum Ordered Packs | 1 |
Product Overview
Key Features
PCB DRILLING MACHINE SPECIFICATION | ||||
NO. | ITEM | CK-01D | CK-02D | CK-04D |
1 | Spindle number | 1 | 2 | 4 |
2 | Spindle speed | 160000/200,000rpm | ||
3 | Spindle power | 0.85KW | ||
4 | Spindle cooling | Water- cooling | ||
5 | X.Y.Z rail | Germany Rexroth / Japan | ||
6 | X.Y.Z ballscrew | Germany Rexroth / Japan | ||
7 | X.Y rapid speed | 30m/min | 40m/min | 40m/min |
8 | Z rapid speed | 30m/min | ||
9 | Linear scale resolution | 0.001mm (Optional) | ||
10 | Repeatability | 0.005mm | ||
11 | Positioning accuracy | 0.005mm | ||
12 | Table dimension | 560*680mm | ||
13 | Machine material | Granite | ||
14 | Drive system | Panasonic | ||
15 | NC system | CHIKIN CNC / SIEB & MEYER CNC84 | ||
16 | Operating interface | Chinese /Englsih | ||
17 | Tool magazine capacity | 100/200PCS | ||
18 | Drilling tool diameter | 0.15-6.35mm | ||
19 | Tool diameter detection | Included | ||
20 | Tool length detection | Included | ||
21 | Broken tool detection (CBD) | Included | ||
22 | Pressure foot switch(QIC) | Optional | ||
23 | Air supply | 0.6~0.8MPa | ||
24 | Power supply | 220V or 380V 3PH,4KVA | 220V or 380V 3PH,5KVA | 220V or 380V 3PH,15KVA |
25 | Machine dimension | 1720*1880*1600mm | 2170*1700*1600mm | 3300*1850*1600mm |
26 | Weight of the machine | 1500KG | 2780KG | 6100KG |
Certification
CE
