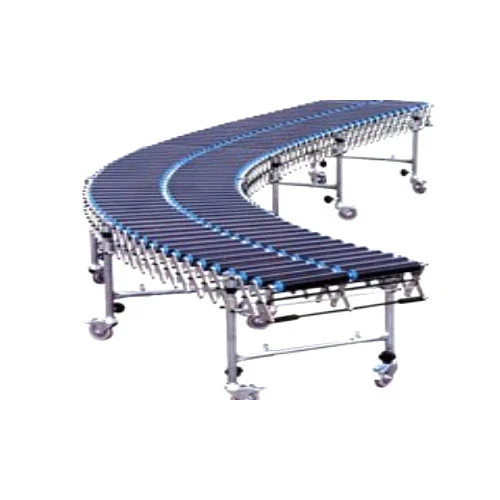

1. General Description

The gravity conveyor system shall be modular, heavy-duty, low-maintenance, and designed for smooth movement of unit loads without powered drive.

2. Conveyor Type
TypeApplication

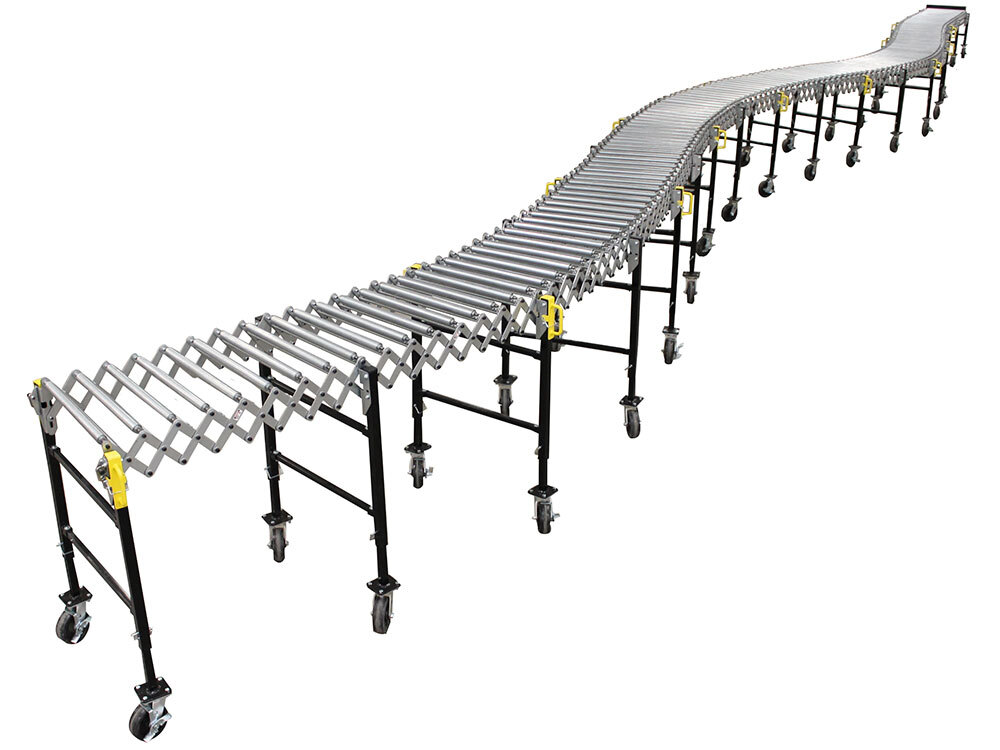

Roller ConveyorCartons, pallets, boxes
Skate Wheel ConveyorLightweight packages
Ball Transfer TableMulti-directional movement
Pallet Gravity ConveyorHeavy pallet handling
3. Design Specifications
ParameterTypical Specification
Conveyor Length130 m
Conveyor Width3001500 mm
Roller Pitch75150 mm
Load Capacity202000 kg/m
Conveyor Height4501200 mm
Conveyor Slope25% typical
Operating Temperature-20C to +60C
4. Conveyor Speed Principle

Gravity conveyor flow depends on slope and friction.

Basic force relation:

F=mgsin

Where:

F = gravitational force component
m = load mass
g = acceleration due to gravity
= conveyor inclination angle
5. Roller Specifications
ItemSpecification
Roller MaterialGI / SS304 / Mild Steel / PVC
Roller Diameter3889 mm
Roller ShaftBright steel
Bearing TypeSealed ball bearings
Roller FinishZinc plated / powder coated
6. Frame Specifications
ItemSpecification
Frame MaterialMild steel / SS304
Side Frame Thickness25 mm
FinishPowder coated / galvanized
Support LegsAdjustable height
7. Structural Design
ParameterSpecification
Maximum DeflectionL/360 max
Safety FactorMinimum 2
Design StandardCEMA / IS / DIN
8. Load Specifications
Load TypeTypical Capacity
Cartons20100 kg
Plastic Crates30150 kg
Pallets5002000 kg
DrumsCustom design
9. Optional Features
FeatureDescription
Side GuidesProduct alignment
End StopsProduct holding
Transfer PlatesConveyor transition
Brake RollersSpeed control
Curved SectionsDirection change
Pop-up StopsLoad separation
10. Safety Requirements
No sharp edges
Anti-pinch design
Stable support structure
Load signage
Emergency stop (if integrated with powered systems)
11. Surface Finish
MaterialFinish
Mild SteelPowder coating
Stainless SteelMatte / polished
Galvanized SteelZinc-coated
12. Environmental Conditions
ConditionRequirement
Indoor UseStandard
Cold StorageLow-temp bearings
Food GradeSS304 construction
Corrosive AreaSS316 optional
13. Testing & Inspection
TestRequirement
Load TestFull load operation
Alignment CheckRequired
Roller Rotation TestSmooth operation
Dimensional InspectionAs per approved drawing
14. Documentation

Typical deliverables:

GA drawing
Layout drawing
Load calculations
Installation manual
Maintenance manual
Inspection reports
15. Applicable Standards
CEMA
ISO 9001
DIN standards
OSHA safety guidelines
IS standards (India)
