Gauge Saver By Sahas Hardware Stores
Price:
Get Latest Price
In Stock
Product Specifications
| Material | Brass/Steel |
| Dimensions | Vary by model |
| Pressure Ranges | Multiple |
| Thread Size | 1/4",1/2" |
| Connection Type | NPT |
| Accuracy | High |
| Weight | Varies |
| Features | Pressure Limiting, Overload Protection, Gauge Protection, Pre-set Cut-off, Reliable Operation, Durable Design, Easy Installation |
| Payment Terms | Cash in Advance (CID) |
| Packaging Details | As per the client requirement |
| Main Export Market(s) | Australia, South America, Africa, Western Europe, Central America, Middle East, Asia, Eastern Europe, North America |
Product Overview
Key Features

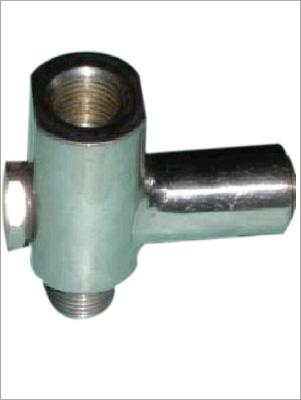

FIEBIG' Gauge saver also known as overload protector or pressure limiting valve. Its function is to cut off pressure if raises above the pre-set value, thus preventing failure and damage to the sensing element of the pressure gauge. Gauge Savers are recommended where the line pressure are likely to exceed the maximum range of the pressure gauge. Available in 3 different range depending upon the set value required and body material of brass and stainless steel.
Technical Specification :
Range in Kg/cm2 and PSI :
| Range | Least Count | Range | Least Count | ||||
| Kg/cm2 | PSI | Kg/cm2 | PSI | Kg/cm2 | PSI | Kg/cm2 | PSI |
| 0-1.06 | 0-15 | 0.02 | 05 | 0-42 | 0-600 | 1 | 20 |
| 0-2.1 | 0-30 | 0.05 | 1 | 0-56 | 0-800 | 2 | 20 |
| 0-3.5 | 0-50 | 0.1 | 1 | 0-70 | 0-1000 | 2 | 20 |
| 0-4.2 | 0-60 | 0.1 | 2 | 0-106 | 0-1500 | 2 | 50 |
| 0-7 | 0-100 | 0.2 | 2 | 0-140 | 0-2000 | 2 | 50 |
| 0-10.6 | 0-150 | 0.2 | 5 | 0-210 | 0-3000 | 5 | 100 |
| 0-14 | 0-200 | 0.2 | 5 | 0-280 | 0-4000 | 10 | 100 |
| 0-17.5 | 0-250 | 0.5 | 10 | 0-350 | 0-5000 | 10 | 100 |
| 0-21 | 0-300 | 0.5 | 10 | 0-420 | 0-6000 | 10 | 200 |
| 0-28 | 0-400 | 1 | 10 | 0-560 | 0-8000 | 10 | 200 |
| 0-35 | 0-500 | 1 | 10 | 0-700 | 0-10000 | 20 | 200 |
Range In KG/ cm2 Only :
| Kg/cm2 | Least Count | Kg/cm2 | Least Count |
| 0-1 | 0.02 | 0-250 | 5.0 |
| 0-1.6 | 0.025 | 0-300 | 5.0 |
| 0-2.5 | 0.05 | 0-400 | 10.0 |
| 0-4 | 0.1 | 0-500 | 10.0 |
| 0-6 | 0.1 | 0-600 | 10.0 |
| 0-10 | 0.2 | 0-800 | 20.0 |
| 0-16 | 0.25 | Mm of Hg to Kg/ cm2 | |
| 0-20 | 0.4 | -760 to 0 | 10 |
| 0-25 | 0.5 | -760 to 0.6 | 0.02 |
| 0-40 | 1.0 | -760 to 1.5 | 0.05 |
| 0-60 | 1.0 | -760 to 3 | 0.1 |
| 0-100 | 2.0 | -760 to 5 | 0.1 |
| 0-160 | 2.5 | -760 to 9 | 0.2 |
| 0-200 | 5.0 | -760 to 15 | 0.2 |
|
|
| -760 to 24 | 0.5 |
Pressure Units Conversion Chart :
| psi | atms | Ft. Hd.H2O at 20oC | In H2O | Kg/ cm2 | Meters H2O | In H.G. At 20oC | mm. Hg. | Cm. Hg. | bar | Millibr (mb) | kpa |
| 1 | 0.0680 | 2.310 | 27.720 | 0.0700 | 0.704 | 2.043 | 51.884 | 5.188 | 0.0690 | 68.947 | 6.895 |
| 14.696 | 1 | 33.659 | 407.513 | 1.0330 | 10.351 | 30.019 | 762.480 | 76.248 | 1.0130 | 1013.0 | 101.325 |
| 0.433 | 0.0290 | 1 | 12.000 | 0.0300 | 0.305 | 0.884 | 22.452 | 2.245 | 0.0300 | 29.837 | 2.984 |
| 0.036 | 0.0025 | 0.833 | 1 | 0.0025 | 0.025 | 0.074 | 1.871 | 0.187 | 0.0025 | 2.486 | 0.249 |
| 14.233 | 0.9680 | 32.867 | 394.408 | 1 | 10.018 | 29.054 | 737.959 | 73.796 | 0.9810 | 980.662 | 98.066 |
| 1.422 | 0.0970 | 3.287 | 39.370 | 0.0990 | 1 | 2.905 | 73.796 | 7.379 | 0.0980 | 98.066 | 9.807 |
| 0.489 | 0.0330 | 1.131 | 13.575 | 0.0340 | 0.345 | 1 | 25.400 | 2.540 | 0.0340 | 33.753 | 3.375 |
| 0.019 | 0.0013 | 0.045 | 0.534 | 0.0014 | 0.0136 | 0.039 | 1 | 0.100 | 0.0010 | 1.329 | 0.133 |
| 0.193 | 0.0131 | 0.445 | 5.340 | 0.0140 | 0.1360 | 0.393 | 10.000 | 1 | 0.0133 | 13.290 | 1.328 |
| 14.504 | 0.9870 | 33.514 | 402.164 | 1.0200 | 10.2110 | 29.625 | 752.470 | 75.247 | 1 | 1000.0 | 100.0 |
| 0.014 | 0.0009 | 0.033 | 0.402 | 0.0010 | 0.0102 | 0.029 | 0.752 | 0.075 | 0.001 | 1 | 0.100 |
| 0.145 | 0.0098 | 0.335 | 4.021 | 0.0100 | 0.1020 | 0.296 | 7.525 | 0.752 | 0.010 | 10.000 | 1 |
Guarantee :
All pressure gauges manufactured are guaranteed against manufacturing defect for period of 12 months from the date of supply provided the instrument is not misused or mishandled. The defective goods will be repaired free of charge provided such goods are send to our factory for repairs.
