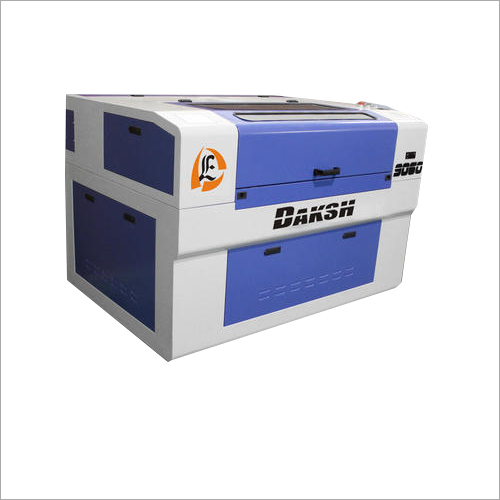

Fully Automatic Fiber Laser Engraver Machine

Authorized in the market as one of the trustworthy manufacturer, exporter and supplier a wide assortment of Automatic Fiber Laser Engraver Machine in Ahmedabad, Gujarat, India.

Approx Price: Rs 5.5 Lakh / Unit
Minimum Order Quantity: 1 Unit
Specifications:-
Model NoEVAN-10EVAN-20EVAN-30EVAN-50ETAN-100
Laser average output power10 W20 W30 W50 W100 W
Wavelength1064 nm
Power Adjustment0 to 100 %
Cooling

Air Cooled
Min. Line WidthMin. 0.03 mm (Depend on Material)
Max. SpeedMax. 10000 mm/s (Max. Linear Speed)
Marking Depth0.01~0.3mm (Depends on Material)
Min Character Height0.5mm
Marking Range145 mm X 145 mm(Standard)
Optional : 175 X 175 mm 300 X 300 mm
Supporting FormatSupport PLT, DXF, BMP File etc., Using SHX TTF Character Storage Directly
Marking Area145 x 145 (standard) 175 x 175 / 300 x 300 (Optical)
Single Pulse Energy (mj)0.5 to 20KHz1 to 20KHz1 to 30KHz1 to50 KHz2.0 to 50 KHz
Repetition Frequency Range20-80 KHz20-80 KHz30-80 KHz50-100 KHz50-100 KHz
Output Power Stability< 3%
Beam Quality(M2 )< 1.5< 1.8< 2.0
Pulse Width(ns)< 100 to 20 KHz< 130 to 20 KHz< 200 to 50 KHz
Power SupplyDC 24 VoltAC 220 Volt
Max Power Consumption120 Watt200 Watt250 Watt300 Watt500 Watt
Specifications are subject to change without notice
