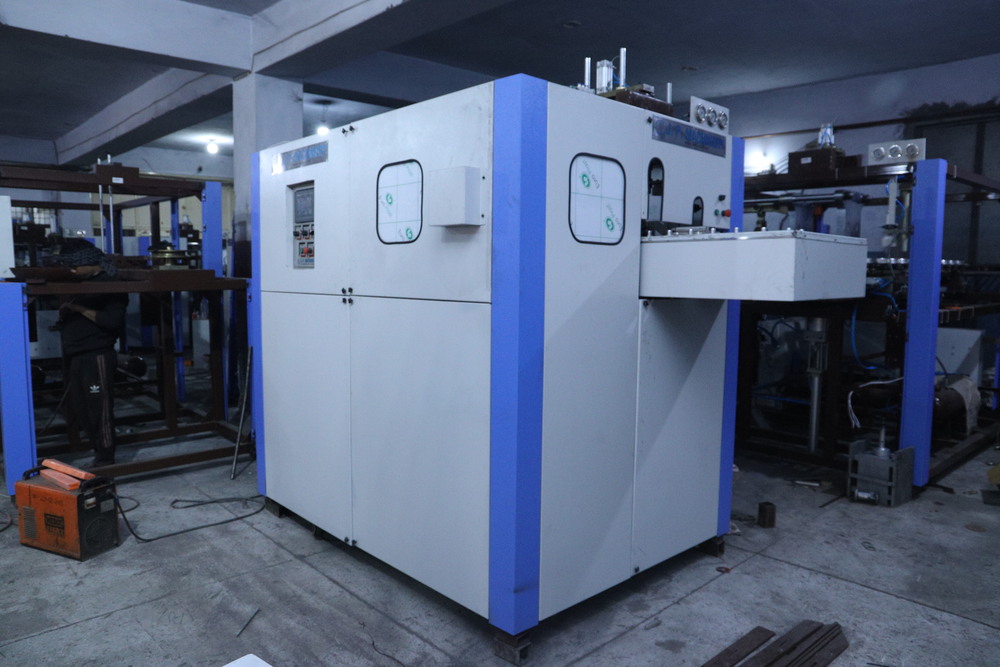

Fully Automatic Blow Molding Machine By Global Aqwa Engineers

Price:

Get Latest Price

In Stock

Product Specifications

Model	Sta-500-B, Sta-1000-B, Sta-2000-B, Sta-2000-J
Volume	30-3000Ml
Cavity	2
Production	600-8000 Pcs/Hr
Neck Diameter	19-80Mm
Material	Steel
Power	12-18Kw
Features	High Productivity, Low Maintenance, Easy Operation, Durable Design, Cost-Effective, Automation, Precise Molding

Product Overview

Key Features

Being a
client-centric company, we are satisfying the requirements of customers by providing them an
advanced gamut of Fully Automatic Blow
Molding Machine. Delivered molding
machines are specifically used to produce small jars and bottles. Developed
under strict observation, these machines are known for their maximized productivity
and low maintenance. Apart from this, the Fully
Automatic Blow Molding Machine can be easily available from us at industry
leading prices.

Features:

Rugged construction
Long lasting
functionality
Excellent
operational efficiency

Further Details:

Fully Automatic Two Stage Pet perform straight Blow Moulding Machine

Technical Specifications

Description/Model	STA-500-B	STA-1000-B(HP)	STA-2000-B(HP)	STA-2000-J(HP)
Products Volume	30ml-500ml	50ml-1250ml	200ml-3000ml	200ml-3000ml
Mould Cavity	2 Cavity	2 Cavity	2 Cavity	2 Cavity
Production per hrs	1800 pcs-2000 pcs	1500 pcs-8000 pcs	1200 pcs-1500 pcs	600 pcs-800 pcs
Neck Dia Meter	19mm-28mm	25mm-28mm	28mm	46mm-800 pcs
Tie Bar distance	235mm	285mm	350mm	350mm
Mould Width	225mm	225mm	240mm	340mm
Mould Thickness	140mm	150mm	200mm	200mm
Cavity Distance	135mm	135mm	185mm	185mm
Clamping Stroke	100mm	150mm	150mm	150mm
Clamping Force	4 Tan	8 Tan	10 Tan	10 Tan
Operation	Hydro-Penu	Hydro-Penu	Hydro-Penu	Hydro-Penu
Electric Heater Power	12 K.W	15 K.W	18 K.W	18 K.W
Heater Type	Inferd Convair	Inferd Convair	Inferd Convair	Inferd Convair
Working Pressure	6 kg-8 kg	8 kg-10 kg	8 kg-10 kg	8 kg-10 kg
Blowing Pressure	15 kg-18kg	30 kg-35kg	30 kg-40kg	30 kg-40kg
Air Consumption	0.9M3/Min	1.M3/Min	1.M3/Min	1.02M3/Min
Staff Requirement	2 Person	2 Person	2 Person	2 Person
Air Compressor	20 HP-(LP), 52 CFM	20 HP-(LP), 42 CFM	20 HP-(LP), 52 CFM	25 HP-(LP), 52 CFM
Area Requirement	30 Mtr	30 Mtr	35 Mtr	35 Mtr
Machine Weight	1500 kg. Approx	1800 kg. Approx	2200 kg. Approx	2500 kg. Approx
