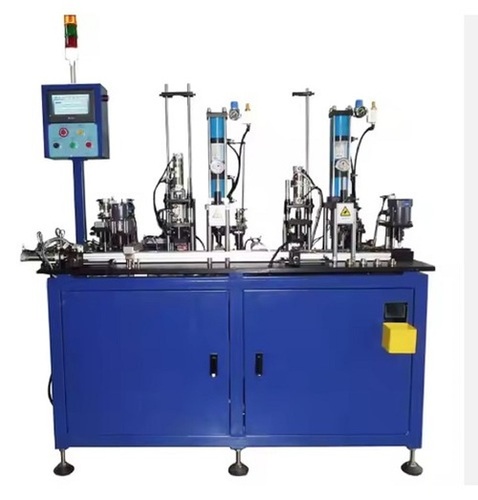

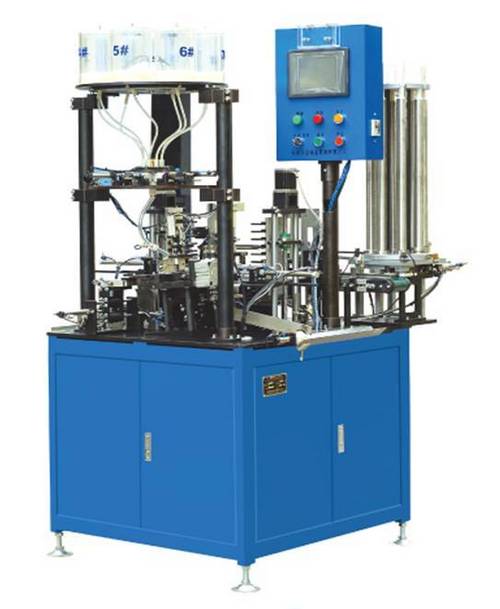

Full Automatic Bearing Assembling Machines

Following are the Main Features of Full Automatic Bearing Assembling Machines :-
1. Horizontal moving and Measuring mode is adopted in rings, making the machine stable and suitable for miniature bearing assembling.
2. With high generality tools which are easy to replace and require less replacement,the machine is suitable for batch production of bearing,assembling and production of various bearing in limited quantities.
3. OMRON CP1H type PLC control system makes the machine reliable and in data collecting.
4. For the interface languages of its touch screen, a switchover of Chinese/English is avaiable. This touch screen ,which has man-machine dialogue function,features detailed information and easy operation.
5. English SOLARTRON duel-channel gauge is adopted, ensuring stable and accurate measurement.
6. Information is stored after bearing rings are matched in multistep way.
Main technical parameters
O,D. of bearing ring : I 60~120 mm
Resolution : 0.1 I m
Productivity : 5 s/ set
Repeat accuracy : 0.5I m
Measuring force : 1.5 N
Measuring range : A 30 I m ( customizable )
Power : 220V 50Hz 5A
Air power : 0.3 MPa
Size ( mm ) : 1000 x 850 x 1185
Weight : 365 Kgs
