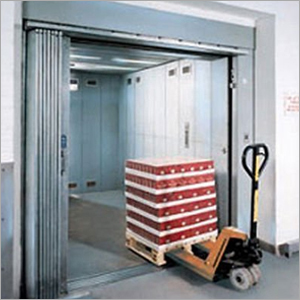

Freight Elevator - Is 2062 Steel Structure, 500 To 10000 Kg Capacity | Automatic Operation, Manual & Collapsible Gate, Customized Dimensions

We provide a premium quality Freight Elevators that are fabricated under industrial standards. These Freight Elevators are widely appreciated by our clients for its hassle free performance.
We provide a premium quality Goods Lifts that are fabricated under industrial standards.
Design - TECH MECH HANDLING SYSTEM
Equipment a Goods Lift
Type a Cage/ Structure/ Sicssor/ Hydrolic/Quainter Freight Elevator
Capacity a 500 K.G to 10000 KG
Load a 125%
Pit a 1.6 MM Nominal
Gate a Manual & Collapsible
Operate - Automatic Each Floor
Cabin Size a According to Customer Requirement
Lift of Height a According to Customer Requirement
Operation Speed - According to Customer Requirement
Technical Description
Steel & Structure a IS 2062 used in the Manufacturing
Gear Box a Helical/Worm l Type/ Material EN-24/EN- 19 IS Code 7401
Coupling - Full/ Half Geared coupling
Wire Rope - Standard construction Parallel strands, galvanized, steel core
Rope Drum a Mild Steel / Smiles Pipe
Bearing a Anti Friction Type Ball/Roller Bearing
Motor- Hoist & Crane Duty Motor Foot/Flange S4 Squirrel Cage CDF 150 S/Hr IP 55 Class F /Induction/Drive Motor
Break a Electro Magnetic Shoe Break
Limit Switch a Rotary Limit Switch for Lowering & Over Hoisting
Electric Panel a Dust & Vermin Proof 14 SWG CRCA Sheet
Drive a 200 to 300 Torque
Operate a Push Button/ Radio Remote Control
Supply Voltage- 415, 3 Phase 50 Hz Supply
Control -110 Volt
