Fluidized Bed Dryer Apparatus

Description:
This is a dryer in which moisture removal takes place by fluidization of solids particles by hot air.

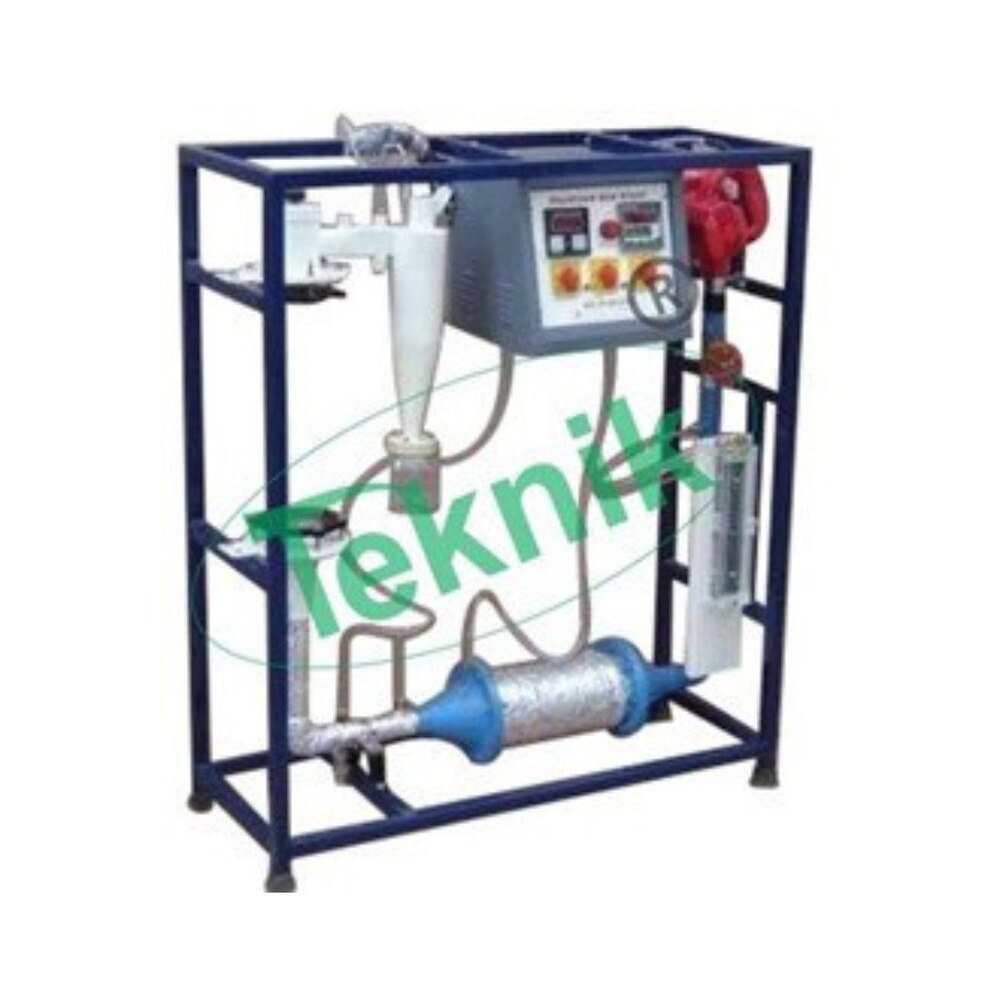

The set-up fitted with a specially designed, vertical Glass Column. The lower portion of the column is filled with fluidizing material. The material is supported on the screen mesh held between two flanges. Air from a compressor is heated in the heater box and passed through the column. Flow control and by-pass valve are fitted to regulate the airflow. At the top outlet of column a cyclone is provided to collect any solid particles taken out by the air stream.
Experimentation:
To study the fluidized bed drying.
To plot the drying curve under fluidized bed condition.
Utilities Required:
Electricity Supply: 1 Phase, 220 V AC, 3 kW.
Granular and free flowing solid of size 1 to 2 mm.
Technical Details:
Control panel comprises of :
Digital Temp. Controller: 0 199.9C (For Hot Air) Standard make on/off switch, Mains Indicator etc.
Column: Material Borosilicate Glass Dia. 80 mm. Total Length 500mm.
Cyclone Separator: Material Stainless Steel, Compatible Capacity with collector.
Air Circulation: By forced draft fan, Arrangement is done vary the air flow rate.
Heating Chamber: Compatible capacity
Heater: Nichrome wire heater
Temperature Sensors: RTD PT-100 type.
