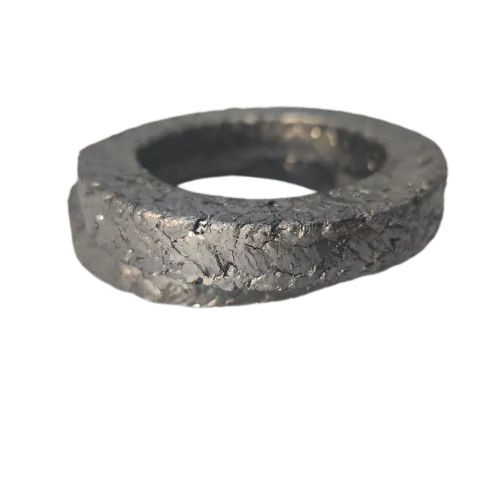

Flexible Pure Graphite Rings

We are engaged in manufacturing and exporting excellent quality Flexible Pure Graphite Rings to our valuable clients. Standard die forming of Flexible Pure Graphite Rings the life out of the ring - that's why we pre-form.
We put compressibility and resilience into each ring and that's what makes the difference.When you receive a pre-formed ring from Smart-Shield, it still has 15% to 20% compressibility left in it.As you install the ring, it's only necessary to tighten the packing until a seal is effected, which leaves considerable life in the ring for future adjustments. The extra care we take makes the difference. It complements braided packing with inherent lubrication and heat dissipation to enhance operational life at affordable prices, making it a popular sealing device among OEMs and End Users.

Features:
High percentage of pure graphite
Precision made for interference seal fit
Wide temperature range
Metal reinforcement
Broad sizes (up to 40a dia)

Specifications:
Sizes : ID 6.0 mm, OD 1016 mm
Density : 1.3 gm / cc, 1.8 gm / cc
Thickness : 1.0 mm to 100 mm
PH Range : 0 to 14
Pressure : 300 bar
Speed : 30 m / s

Working Temperature:
In Oxidizing Atmosphere : -240 to 450 Degree C
In Steam : -240 to 650 Degree C
In Non Oxidizing
Atmosphere : -240 to 3000 Degree C.
