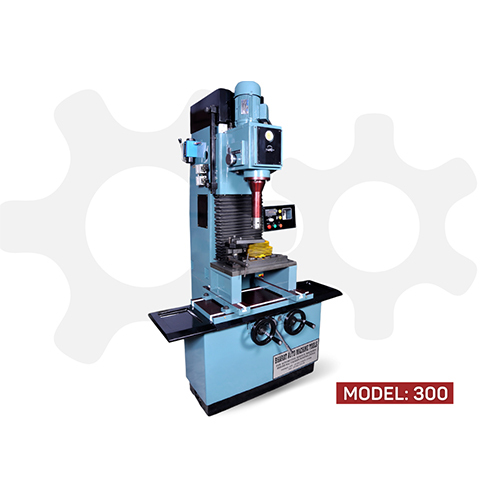

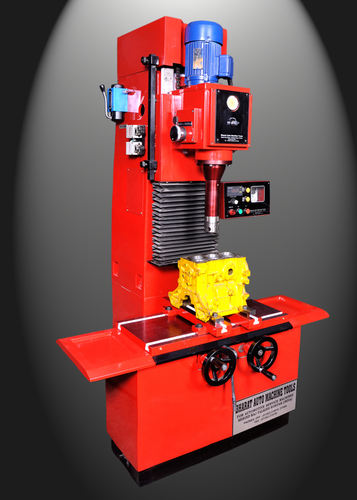

Fine Vertical Boring Machine

Boosting our revenue growth and future expansion, we are engaged as manufacturer, supplier and exporter of Fine Vertical Boring Machine in Rohtak, Haryana, India. Appreciated for effectively re-boring the engine blocks and liners, these machines are extensively used in the automobile industry. Our skilled workers fabricate the offered machine using corrosion resistance material and advanced production techniques. Vertical Fine Boring Machine offered by us is known for the below mentioned attributes:

Other details:
Base and column are of high grade casting, Boring head travels on a ground finished guide ways protected with bellows. Boring head is fitted with hardened alloy gears to give smooth feed and slide on columns.

Controls are provided on one side of the machine on, a comfortable position and easy operation. Two models manufactured at present are alike as for structural and main dimensions concerned. New Model 600 has six speed gear box.

Standard Accessories
a cBoring tool setting device complete with micrometer
a cTwo tool holders for boring
a cPortable Grinder with suitable Grinding ap[pint Wheels
a cTwo Block Jacks
a cTwo Sets of parallel blocks o sizes 200 x 800 mm and 1230 x 600 mm
a cService Spanners
a cOne Spindle fitted with the Machine, bore dia. capacity 65 - 135 mm
Extra Accessories
a cExtra Spindle of Capacity: 32 - 65 mm
a cExtra Spindle of Capacity: 135 - 250 mm
