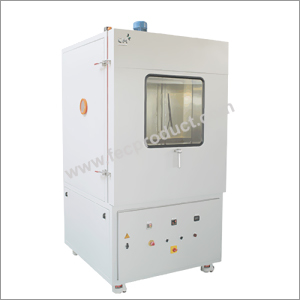

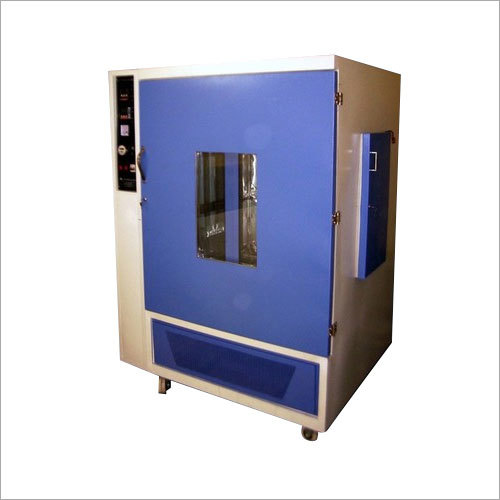

Environmental Test Chambers - Sus304 Stainless Steel & A3 Steel, Dimensions 105x97x176 Cm To 147x152x231 Cm, Cooling System With Tecumseh Compressor, Touch Control Temperature Range -40â°c To 150â°c

HIGH & LOW TEMPERATURE
Purpose
The inner bladder of the chamber is made of SUS304 stainless steel plate while the outer bladder is made of A3 steel plate sprayed with plastic. A large observation window is set on the chamber door. A test hole with 25mm, or 50mm or 100mm diameter is set on the left of the chamber body.
A fixable PU moving wheel is adopted on the bottom of the test chamber.
Controller
The temperature controller adopts fully imported (Japanese PKC) meter with touch keys. P.I.D automation calculation function is available.
Cooling and Air Path Circulation System
The cooler adopts original French Tecumseh fully-closed compressor. The cooling system adopts single or dual low-temperature loop system design.
Specs & Technical Parameters
ModelSLE 100SLE 225SLE 500SLE 800
Workroom Dimensions45*45*50 50*60*75 80*70*9080*100*100
Exterior Dimensions 105*97*176 105*102*200 132*132*217 147*152*231
Power(@-40A C)4.5(KW)5.5 (KW)8.0(KW) ;9.0(KW)
Temperature Range 20A C~150A C 40A C~150A C 60A C~150A C 70A C~150A C
Fluctuation/Evennessa A 0.5A C/a A 2A C
Temperature Rise Speed1.0~3.0A C/min
Temperature Fall Speed 0.7~1.0A C/min
